Home > ISO Positive 80° Rhombic Inserts > CPGT C Chipbreaker > 5780214 CPGT080204C CT3000

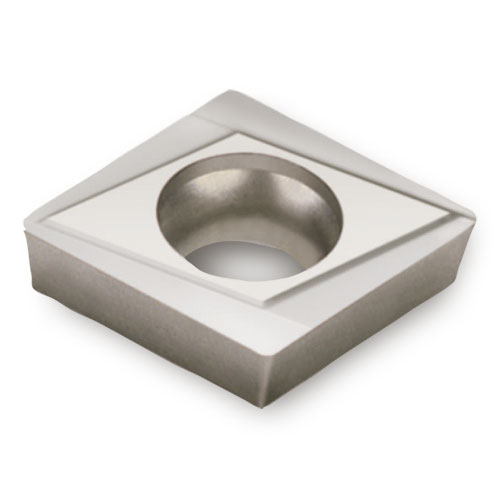

EDP: 5780214
Part: CPGT080204C CT3000
Series: CPGT C Chipbreaker

EPSR Insert Included Angle

80

IC Inscribed Circle Dia.

0.313

RE Corner Radius

0.016

L Cutting Edge Length

0.319

S Thickness

0.094

D1 Fixing Hole Dia.

0.134

AN Clearance Angle Major

11

IH Insert Hand

Neutral

NOI Number of Indexes

2

fn Cutting Feed Min.

0.0020

fn Cutting Feed Max.

0.0080

ap Cutting Depth Min.

0.016

ap Cutting Depth Max.

0.059

Available : 0

Product Series Features:

Positive 11° clearance 80° rhombic
Ground inserts for finishing applications

EPSR - Insert Included Angle	80
IC - Inscribed Circle Dia.	0.313
RE - Corner Radius	0.016
L - Cutting Edge Length	0.319
S - Thickness	0.094
D1 - Fixing Hole Dia.	0.134
AN - Clearance Angle Major	11
IH - Insert Hand	Neutral
NOI - Number of Indexes	2
fn - Cutting Feed Min.	0.0020
fn - Cutting Feed Max.	0.0080
ap - Cutting Depth Min.	0.016
ap - Cutting Depth Max.	0.059
