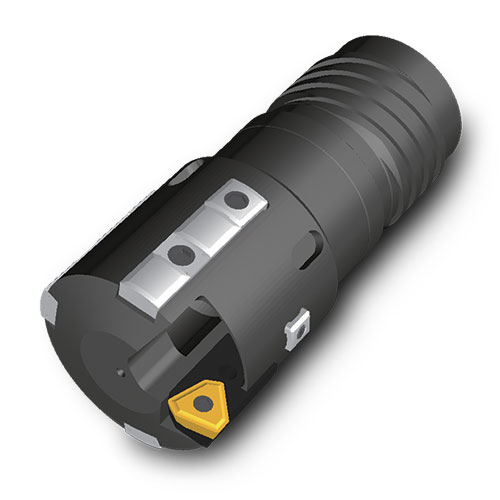

Series: TBTA-R...SE4
Product Series Features:
- BTA Indexable - C'Boring System
- Single tube system
- External 4-start thread
- Ø.984-1.574" (25-39.99 mm)
EDP |
Part Number |

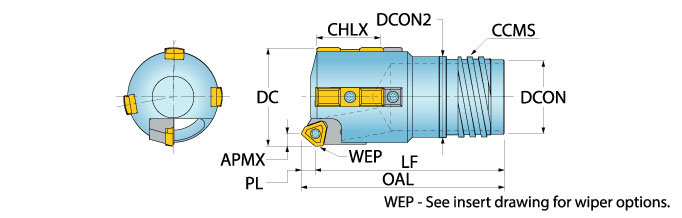

DC Cutting Dia. |
PL Point Length |
LF Functional Length |
OAL Overall Length |
DCON Connection Dia. |
DCON2 Connection Dia. 2 |
CCMS Connection Code Machine Side |
|
|---|---|---|---|---|---|---|---|---|---|
| 4841245 | REF ONLY CALL TO SPCFY DI | 0.984 (24.99 mm) | 0.110 | 2.85 | 2.97 | 0.689 | 0.768 | BTA SE4-22 |
Notes:
- Heads include one set of cartridges, guide pads, and screws.
