Series: 25J3F - 90° End Mill
Product Series Features:
- Ø1.25" (Weldon)
- All Eff./ RH Helix
- 9 mm Insert with 4 indexes
- Insert corner: .031" R
EDP |
Part Number |

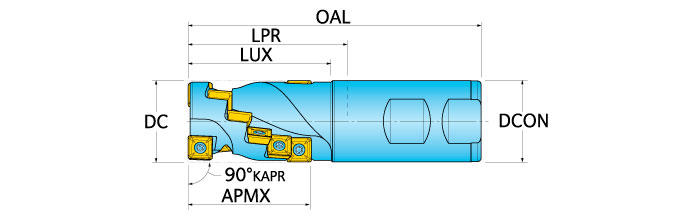

DC Cutting Dia. |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
LPR Protruding Length |
OAL Overall Length |
ZNF Face Insert Count |
ZNP Peripheral Insert Count |
NOF Flute Count |
KAPR Cutting Edge Angle |
DCON Shank Dia. |
CSP Coolant |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3007853 | 25J3F-1202281R01 | 1.250 | 1.850 | 2.20 | 2.25 | 4.50 | 2 | 10 | 2 | 90.0 | 1.2500 | No | NA |
Notes:
- Total Number of Inserts = ZNF + ZNP.
