Series: 15X1Z - 90° Aluminum Router End Mill (Weldon)

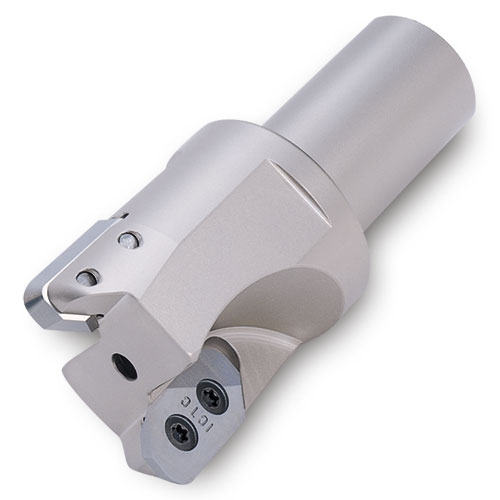

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø2.000 (Weldon Shank)
- 90° High-Speed Aluminum Router Mill
- 33mm Insert Thickness
- .99" Depth of cut
- Insert corners: .5 mm, .031", .062", .125", 5 mm, .250" R
- Insert with 2 Indexes

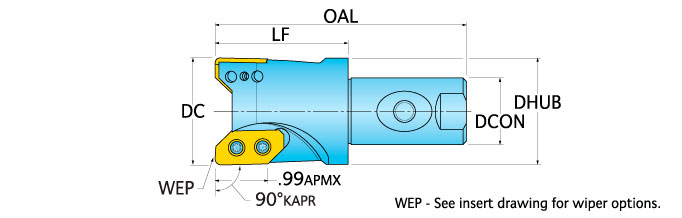

EDP |
Part Number |
DC Cutting Dia. |
LPR Protruding Length |
LF Functional Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008101 | 15X1Z-2002581R01 | 2.000 | - | 2.50 | 4.75 | 2 | 1.2500 | 15.0 | NA | |||
| 3008682 | 15X1Z-2002581R02 | 2.000 | 2.50 | 2.50 | 4.75 | 2 | 1.2500 | 15.0 | NA | NA |
