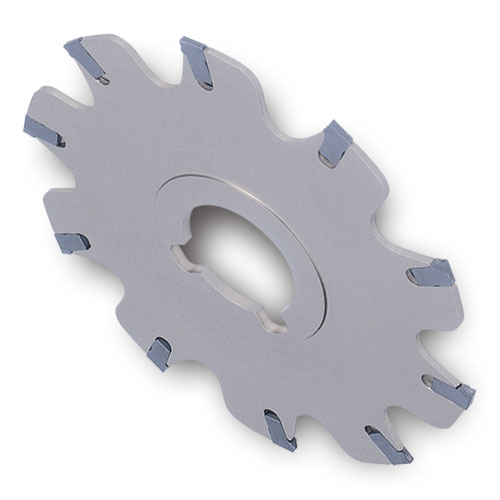

Series: 31J - Light-Duty Narrow Slitters
Product Series Features:
- Ø3.00 - 4.00"
- Integral Hub
- .063" Cutting Width
- Insert Corner: .006"R & Full Radius
EDP |
Part Number |
DC Cutting Dia. |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
THUB Hub Thickness |
DHUB Hub Dia. |
DCON Bore Dia. |
KWW Keyway |
SSC Insert Seat Size |
RPMX RPM Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008285 | 31J6A-03006AF-01 | 3.000 | 0.71 | 8 | 0.094 | 1.54 | 1.0000 | 0.25 | 0 | 1050 |
Notes:
- **Note, OBSOLETE product line.
- Refer to the following for stocked alternatives:
- T-Clamp Ultra, series TSC
EDP |
Part Number |
DC Cutting Dia. |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
THUB Hub Thickness |
DHUB Hub Dia. |
DCON Bore Dia. |
KWW Keyway |
SSC Insert Seat Size |
RPMX RPM Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008285 | 31J6A-03006AF-01 | 3.000 | 0.71 | 8 | 0.094 | 1.54 | 1.0000 | 0.25 | 0 | 1050 | |
| 3008286 | 31J6A-04006AF-01 | 4.000 | 1.21 | 10 | 0.094 | 1.54 | 1.0000 | 0.25 | 0 | 780 |
