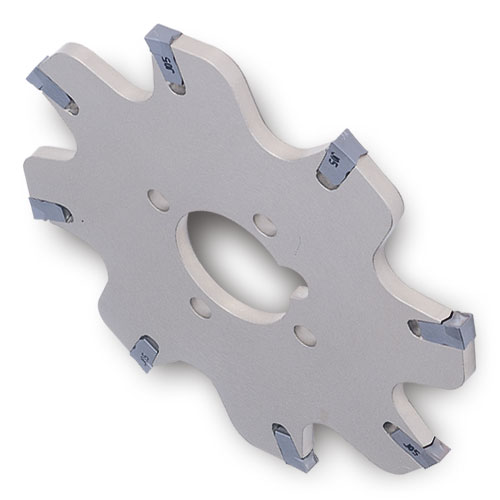

Series: 31J - Light-Duty Narrow Slitters
Product Series Features:
- Ø4.00 - 6.00"
- Drive Flange
- Cutting width: 0.122" - 0.250"
- Insert corners: .008", .011", .014" R & Full Radius
EDP |
Part Number |
DC Cutting Dia. |
CWN Cutting Width Min. |
CWX Cutting Width Max. |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
DHUB Hub Dia. |
HHUB Hub Height |
THUB Hub Thickness |
DCON Bore Dia. |
KWW Keyway |
SSC Insert Seat Size |
RPMX RPM Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008287 | 31J6B-04012AV-01 | 4.000 | 0.122 | 0.122 | 1.08 | 6 | 1.81 | 0.390 | 0.874 | 1.0000 | - | 0 | 780 |
Notes:
- **Note, OBSOLETE product line.
- Refer to the following for stocked alternatives:
- T-Clamp Ultra, series TSC
EDP |
Part Number |
DC Cutting Dia. |
CWN Cutting Width Min. |
CWX Cutting Width Max. |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
DHUB Hub Dia. |
HHUB Hub Height |
THUB Hub Thickness |
DCON Bore Dia. |
KWW Keyway |
SSC Insert Seat Size |
RPMX RPM Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008287 | 31J6B-04012AV-01 | 4.000 | 0.122 | 0.122 | 1.08 | 6 | 1.81 | 0.390 | 0.874 | 1.0000 | - | 0 | 780 | |
| 3008292 | 31J6B-06012AX-01 | 6.000 | 0.122 | 0.122 | 1.41 | 10 | 3.15 | 0.470 | 1.034 | 1.5000 | 0.38 | 0 | 520 | |
| 3008294 | 31J6D-06025AX-01 | 6.000 | 0.250 | 0.250 | 1.41 | 10 | 3.15 | 0.470 | 1.190 | 1.5000 | 0.38 | 0 | 520 |
