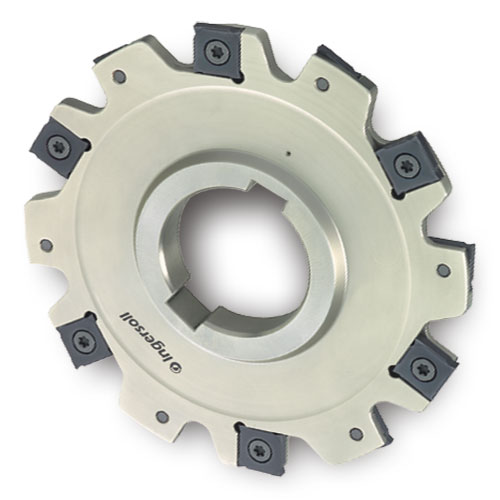

Series: 38L5 Axial Drive
Product Series Features:
- Medium-Duty Slotters
- **Note: OBSOLETE PRODUCT
- .187" to .312" Cutting width
- Insert with 4 indexes
- Refer to the following stocked alternative:
- Gold Slot, series 3VJ4V
EDP |
Part Number |
DC Cutting Dia. |
CW Cutting Width |
CDX Cutting Depth Max. |
ZEFP Eff. Teeth Periphery |
ZNP Peripheral Insert Count |
DHUB Hub Dia. |
THUB Hub Thickness |
DCON Bore Dia. |
KWW Keyway |
INSERT Insert Series |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3017068 | 38L5G-03018AF-01 | 3.000 | 0.187 | 0.67 | 5 | 10 | 1.56 | 0.375 | 1.0000 | 0.25 | SDE-31-001 | NA |
Notes:
- ** Note, OBSOLETE product line.
- Refer to the following stocked alternative:
- Gold Slot, series 3VJ4V.
- Insert SDE-42-003 fits ONLY Competitor Cutter!

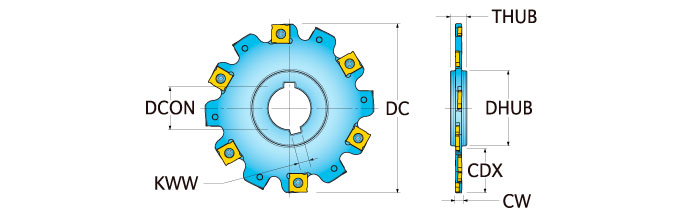

EDP |
Part Number |
DC Cutting Dia. |
CW Cutting Width |
CDX Cutting Depth Max. |
ZEFP Eff. Teeth Periphery |
ZNP Peripheral Insert Count |
DHUB Hub Dia. |
THUB Hub Thickness |
DCON Bore Dia. |
KWW Keyway |
INSERT Insert Series |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3017068 | 38L5G-03018AF-01 | 3.000 | 0.187 | 0.67 | 5 | 10 | 1.56 | 0.375 | 1.0000 | 0.25 | SDE-31-001 | NA | |||
| 3017069 | 38L5G-04018AF-01 | 4.000 | 0.187 | - | 6 | 12 | 1.75 | 0.500 | 1.0000 | 0.25 | SDE-31-001 | NA | NA | NA | |
| 3016990 | 38L5H-04025AF-01 | 4.000 | 0.250 | 1.09 | 5 | 10 | 1.75 | 0.500 | 1.0000 | 0.25 | SDE-42-001 | NA | |||
| 3016991 | 38L5G-05018AG-01 | 5.000 | 0.187 | 1.25 | 7 | 14 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-31-001 | NA | NA | NA | |
| 3016992 | 38L5H-05025AG-01 | 5.000 | 0.250 | 1.53 | 6 | 12 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-42-001 | NA | NA | NA | |
| 3016993 | 38L5H-05031AG-01 | 5.000 | 0.312 | - | 6 | 12 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-42-002 | NA | NA | NA | |
| 3016994 | 38L5G-06015AG-01 | 6.000 | 0.156 | 1.97 | 9 | 18 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-31-001 | NA | |||
| 3016995 | 38L5G-06018AG-01 | 6.000 | 0.187 | 1.97 | 9 | 18 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-31-002 | NA | NA | NA | |
| 3016996 | 38L5H-06025AG-01 | 6.000 | 0.250 | 2.03 | 7 | 14 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-42-001 | NA | |||
| 3016997 | 38L5H-06031AG-01 | 6.000 | 0.312 | - | 7 | 14 | 1.87 | 0.500 | 1.2500 | 0.31 | SDE-42-002 | NA | NA | NA | |
| 3016998 | 38L5H-08025AH-01 | 8.000 | 0.250 | - | 9 | 18 | 2.75 | 0.500 | 1.5000 | 0.38 | SDE-42-001 | NA | NA | NA | |
| 3016999 | 38L5H-08031AH-01 | 8.000 | 0.312 | - | 9 | 18 | 2.75 | 0.500 | 1.5000 | 0.38 | SDE-42-003 | NA | NA | NA |
