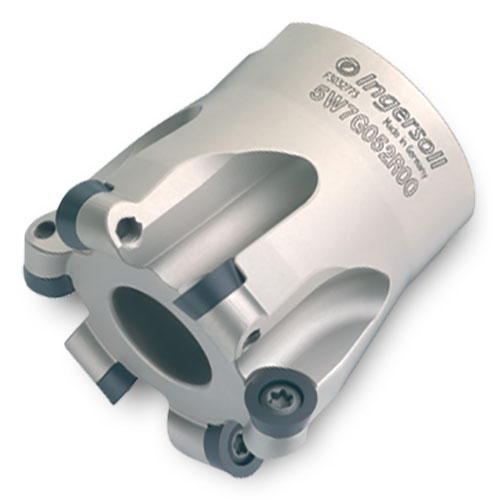

Series: 5W7 (10-20 mm Inserts)
Product Series Features:
- Button Face Mill
- Button I.C.: 10, 12, 16 & 20 mm
- Inch cutter bodies

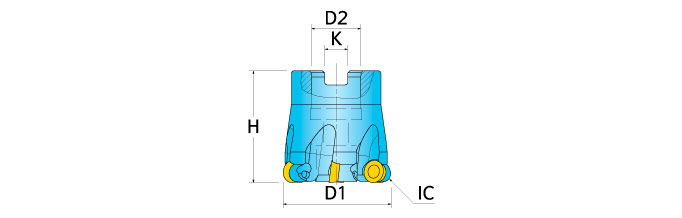

EDP |
Part Number |
DCX Cutting Dia. Max. |
APMX Depth of Cut Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
PRFRAD Profile Radius |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3017076 | 5W7K-40R01 | 4.000 | 8.00 mm | 2.000 | 7 | 16.00 mm | 1.2500 | 0.500 | 3.5 | NA |
Notes:
- Cutting Edge Radius: 5, 6, 8 and 10mm
- Can be used with Inno-Fit system.
EDP |
Part Number |
DCX Cutting Dia. Max. |
APMX Depth of Cut Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
PRFRAD Profile Radius |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3017070 | 5W7G-20R01 | 2.000 | 5.00 mm | 1.625 | 6 | 10.00 mm | 0.7500 | 0.312 | 4.5 | NA | |||
| 3017071 | 5W7H-20R01 | 2.000 | 6.00 mm | 1.625 | 5 | 12.00 mm | 0.7500 | 0.312 | 5.0 | NA | |||
| 3017072 | 5W7H-25R01 | 2.500 | 6.00 mm | 1.625 | 6 | 12.00 mm | 0.7500 | 0.312 | 4.0 | NA | NA | ||
| 3017073 | 5W7K-20R01 | 2.000 | 8.00 mm | 2.000 | 4 | 16.00 mm | 0.7500 | 0.312 | 6.0 | NA | |||
| 3017075 | 5W7K-30R01 | 3.000 | 8.00 mm | 2.000 | 6 | 16.00 mm | 1.0000 | 0.375 | 5.5 | NA | |||
| 3017076 | 5W7K-40R01 | 4.000 | 8.00 mm | 2.000 | 7 | 16.00 mm | 1.2500 | 0.500 | 3.5 | NA | |||
| 3017080 | 5W7K-60R01 | 6.000 | 8.00 mm | 2.500 | 9 | 16.00 mm | 1.5000 | 0.625 | 2.0 | NA | |||
| 3017079 | 5W7M-60R01 | 6.000 | 10.00 mm | 2.500 | 9 | 20.00 mm | 1.5000 | 0.625 | 2.0 | NA | NA |
