Series: 12J1X - 90° End Mill (Weldon)
Product Series Features:
- Ø.750-1.500" (Weldon)
- .49" Depth of cut
- 12 mm Insert with 2 indexes
- 32-63 Ra surface finishes when engaging the integrated wiper (WEP)
- Insert corners: .031", .062" .125" R
EDP |
Part Number |

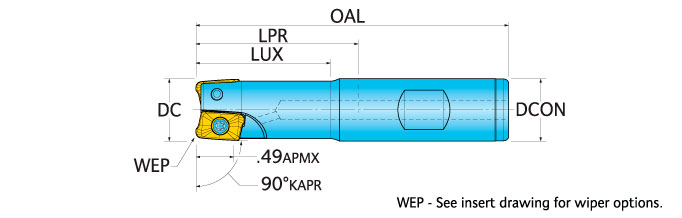

DC Cutting Dia. |
LUX Usable Length Max. |
LPR Protruding Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3024804 | 12J1X-0702084R01 | 0.725 | 1.80 | 2.00 | 4.00 | 2 | 0.7500 | 7.0 | ||||
| 3024801 | 12J1X-0701184R01 | 0.750 | 1.05 | 1.25 | 3.25 | 2 | 0.7500 | 7.0 | ||||
| 3024803 | 12J1X-0701784R01 | 0.750 | 1.55 | 1.75 | 3.75 | 2 | 0.7500 | 7.0 | ||||
| 3024805 | 12J1X-0703084R01 | 0.750 | 2.80 | 3.00 | 5.00 | 2 | 0.7500 | 7.0 | ||||
| 3024806 | 12J1X-0705780R01 | 0.750 | 5.55 | 5.75 | 8.00 | 2 | 1.0000 | - | NA | |||
| 3024807 | 12J1X-0801784R01 | 0.875 | 1.75 | 1.75 | 3.75 | 2 | 0.7500 | 5.5 | NA | |||
| 3024809 | 12J1X-1001780R01 | 1.000 | 1.55 | 1.75 | 4.00 | 3 | 1.0000 | 4.5 | ||||
| 3024744 | 12J1X-1001784R01 | 1.000 | 1.75 | 1.75 | 3.75 | 3 | 0.7500 | 4.5 | ||||
| 3024810 | 12J1X-1003780R01 | 1.000 | 3.55 | 3.75 | 6.00 | 3 | 1.0000 | - | ||||
| 3024886 | 12J1X-1201780R01 | 1.250 | 1.75 | 1.75 | 4.00 | 4 | 1.0000 | 3.5 | ||||
| 3024812 | 12J1X-1201784R01 | 1.250 | 1.75 | 1.75 | 3.75 | 4 | 0.7500 | 3.5 | ||||
| 3024893 | 12J1X-1202281R01 | 1.250 | 2.25 | 2.25 | 4.50 | 3 | 1.2500 | 3.5 | NA | |||
| 3040797 | 12J1X-1501784R01 | 1.500 | 1.75 | 1.75 | 3.75 | 4 | 0.7500 | 2.0 | ||||
| 3024895 | 12J1X-1502281R01 | 1.500 | 2.25 | 2.25 | 4.50 | 4 | 1.2500 | 2.0 |
