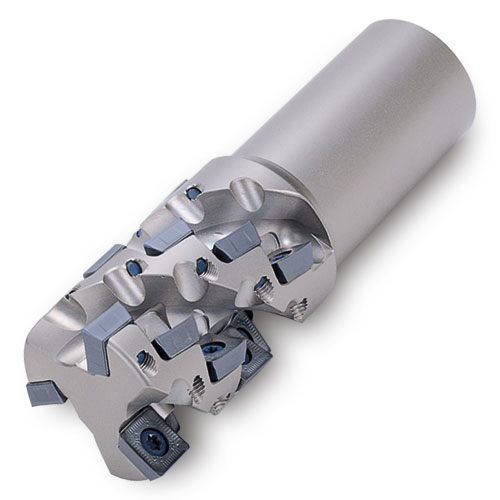

Series: 25J3G - 90° Extended Flute Mill
Product Series Features:
- Ø1.50 (Weldon)
- All Eff. / RH Helix
- 11 mm Insert with 4 indexes
- Insert corner: .031" R
EDP |
Part Number |

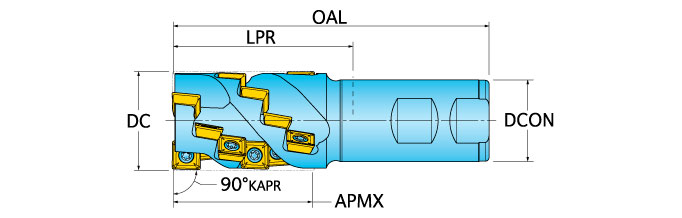

DC Cutting Dia. |
APMX Depth of Cut Max. |
LPR Protruding Length |
OAL Overall Length |
ZNF Face Insert Count |
ZNP Peripheral Insert Count |
NOF Flute Count |
KAPR Cutting Edge Angle |
DCON Shank Dia. |
CSP Coolant |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3007805 | 25J3G-1502681R01 | 1.500 | 2.130 | 2.60 | 4.85 | 3 | 15 | 3 | 90.0 | 1.2500 | No | NA |
Notes:
- Total Number of Inserts = ZNF + ZNP.
