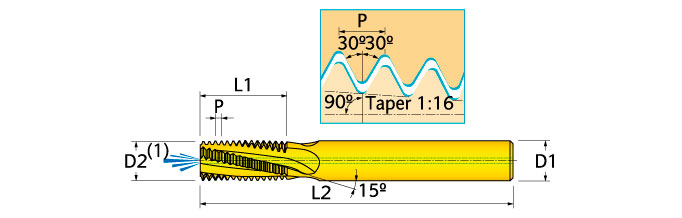

Series: MTECB-NPT - Solid Carbide Thread Mill
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Cylindrical Shank
- For External or Internal NPT Thread
- Coolant Thru
EDP |
Part Number |
P Pitch (TPI) |
Thread Standard |
D1 Shank Dia. |
D2 Thread Dia. |
NOF Number of Flutes |
L1 Usable Length |
L2 Overall Length |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2946093 | MTECB0312C0427NPT IN2005 | 27.0 | 1/8 | 0.3125 | 0.299 | 3 | 0.430 | 2.500 | NA | NA | NA | |
| 2946094 | MTECB0375D0618NPT IN2005 | 18.0 | 1/4-3/8 | 0.3750 | 0.375 | 4 | 0.640 | 3.000 | NA | NA | NA | |
| 2946095 | MTECB0625D0814NPT IN2005 | 14.0 | 1/2-3/4 | 0.6250 | 0.610 | 4 | 0.890 | 4.000 | NA | NA | NA | |
| 2946096 | MTECB0750D1111.5NPTIN2005 | 11.5 | 1-2 | 0.7500 | 0.750 | 4 | 1.170 | 4.000 | NA | NA | NA |
