Series: AX2Q - 90° Router Face Mill for Aluminum

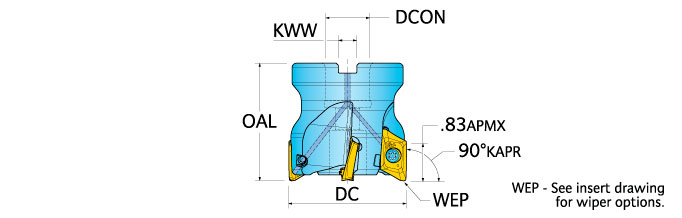

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø2.000-6.000"
- 22 mm Insert with 2 indexes
- .83" Depth of Cut
- V-Shape with key drive pocket ideal for high RPM
- Finishes as good as 15 Ra
- Insert corners: .020", .031", .062", .118", .197", .250" R
EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
RPMX RPM Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2914653 | AX2Q-20R01 | 2.000 | 2.000 | 2 | 0.7500 | 0.312 | 8.0 | 31400 | ||||
| 2914654 | AX2Q-20R02 | 2.000 | 2.000 | 3 | 0.7500 | 0.312 | 8.0 | 31400 | ||||
| 2914655 | AX2Q-25R01 | 2.500 | 2.000 | 3 | 1.0000 | 0.375 | 6.0 | 28000 | ||||
| 2914656 | AX2Q-25R02 | 2.500 | 2.000 | 4 | 1.0000 | 0.375 | 6.0 | 28000 | ||||
| 2914657 | AX2Q-30R01 | 3.000 | 2.000 | 3 | 1.0000 | 0.375 | 5.0 | 24800 | ||||
| 2914658 | AX2Q-30R02 | 3.000 | 2.000 | 5 | 1.0000 | 0.375 | 5.0 | 24800 | ||||
| 2914659 | AX2Q-40R01 | 4.000 | 2.375 | 3 | 1.5000 | 0.625 | 3.0 | 22200 | ||||
| 2914660 | AX2Q-40R02 | 4.000 | 2.375 | 5 | 1.5000 | 0.625 | 3.0 | 22200 | ||||
| 2914661 | AX2Q-60R01 | 6.000 | 2.375 | 3 | 1.5000 | 0.625 | 2.0 | 17500 | ||||
| 2914662 | AX2Q-60R02 | 6.000 | 2.375 | 7 | 1.5000 | 0.625 | 2.0 | 17500 |
Notes:
- Max RPM applies to a properly balanced assembly to G2.5 (toolholder, cutter & inserts).
- Cutter body for inserts with corner radii larger than .125” should be modified as follows: Body "R" = Insert "R" - .015”
