Series: C*FM
Product Series Features:
- C-Adapter (ISO 26623-1)
- Face Mill Holder DIN 6357 (Metric)
- Quick Change Holder
- Note: Peripheral clamping screws are not supplied with the holder

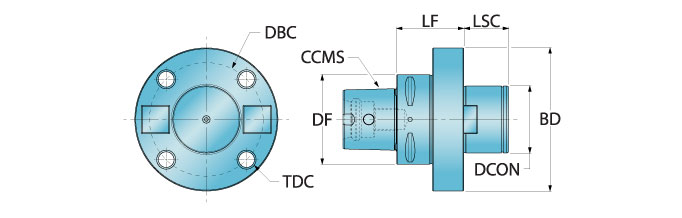

EDP |
Part Number |
CCMS Connection Code Machine Side |
DCON Pilot Dia. |
LF Functional Length |
BD Body Dia. |
LSC Clamping Length |
DF Flange Dia. |
DBC Bolt Circle Dia. |
TDZ Thread Size |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4561555 | C8FM60X60 | C8 | 60.00 mm | 60.00 mm | 128.00 mm | 40.00 mm | 80.00 mm | 101.6 mm | M16 | NA |
Notes:
- *Coolant Tube is required to activate coolant function, and should be ordered separately

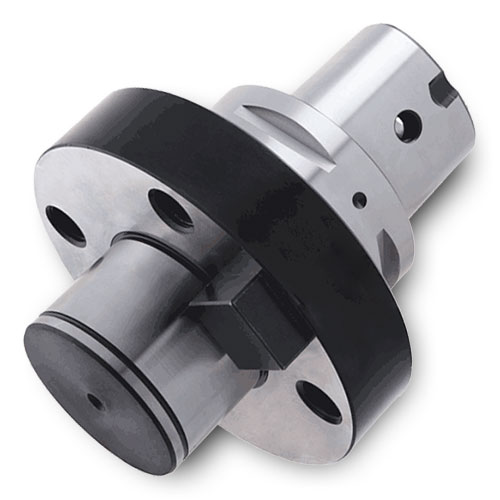

- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
