Series: YAB
Product Series Features:

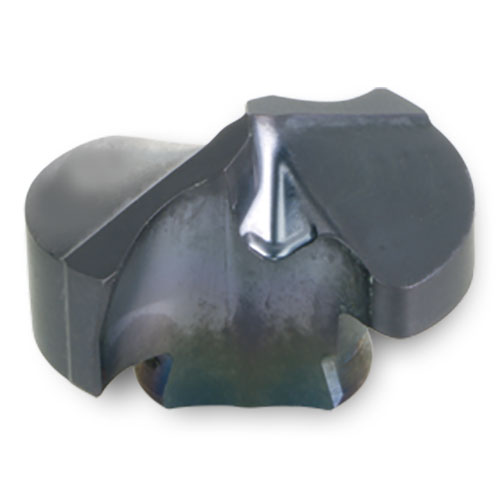

- Qwik Twist 140° Replaceable Tips
- Steel Geometry & General Purpose
- Grade IN2005
Part Number |
DC Cutting Dia. |
SSC Insert Seat Size |
PL Point Length |
LPR Projection Length |
LF Functional Length |
|
|---|---|---|---|---|---|---|
| YAB0680R01 | 0.2677 (6.80 mm) | 6.8 | 0.049 | 0.161 | 0.113 | |
| YAB0750R01 | 0.2953 (7.50 mm) | 8 | 0.054 | 0.161 | 0.108 | |
| YAB0760R01 | 0.2992 (7.60 mm) | 8 | 0.054 | 0.161 | 0.107 | |
| YAB0770R01 | 0.3031 (7.70 mm) | 8 | 0.055 | 0.161 | 0.106 | |
| YAB0780R01 | 0.3071 (7.80 mm) | 8 | 0.056 | 0.161 | 0.106 | |
| YAB0790R01 | 0.3110 (7.90 mm) | 8 | 0.057 | 0.162 | 0.105 | |
| YAB0800R01 | 0.3150 (8.00 mm) | 8 | 0.058 | 0.161 | 0.104 | |
| YAB0810R01 | 0.3189 (8.10 mm) | 8 | 0.058 | 0.161 | 0.104 | |
| YAB0820R01 | 0.3228 (8.20 mm) | 8 | 0.059 | 0.161 | 0.103 | |
| YAB0830R01 | 0.3268 (8.30 mm) | 8 | 0.059 | 0.161 | 0.102 | |
| YAB0840R01 | 0.3307 (8.40 mm) | 8 | 0.060 | 0.161 | 0.101 | |
| YAB0850R01 | 0.3346 (8.50 mm) | 8 | 0.061 | 0.161 | 0.100 | |
| YAB0860R01 | 0.3386 (8.60 mm) | 8 | 0.062 | 0.161 | 0.100 | |
| YAB0870R01 | 0.3425 (8.70 mm) | 8 | 0.062 | 0.161 | 0.099 | |
| YAB0880R01 | 0.3465 (8.80 mm) | 8 | 0.063 | 0.161 | 0.098 | |
| YAB0890R01 | 0.3504 (8.90 mm) | 8 | 0.064 | 0.161 | 0.098 | |
| YAB0900R01 | 0.3543 (9.00 mm) | 9 | 0.065 | 0.169 | 0.105 | |
| YAB0910R01 | 0.3583 (9.10 mm) | 9 | 0.065 | 0.169 | 0.104 | |
| YAB0920R01 | 0.3622 (9.20 mm) | 9 | 0.066 | 0.169 | 0.104 | |
| YAB0930R01 | 0.3661 (9.30 mm) | 9 | 0.067 | 0.170 | 0.103 | |
| YAB0940R01 | 0.3701 (9.40 mm) | 9 | 0.067 | 0.170 | 0.103 | |
| YAB0950R01 | 0.3740 (9.50 mm) | 9 | 0.068 | 0.169 | 0.101 | |
| YAB0960R01 | 0.3780 (9.60 mm) | 9 | 0.069 | 0.169 | 0.100 | |
| YAB0970R01 | 0.3819 (9.70 mm) | 9 | 0.070 | 0.170 | 0.100 | |
| YAB0980R01 | 0.3858 (9.80 mm) | 9 | 0.070 | 0.169 | 0.099 | |
| YAB0990R01 | 0.3898 (9.90 mm) | 9 | 0.071 | 0.169 | 0.098 | |
| YAB1000R01 | 0.3937 (10.00 mm) | 10 | 0.072 | 0.209 | 0.137 | |
| YAB1010R01 | 0.3976 (10.10 mm) | 10 | 0.072 | 0.208 | 0.136 | |
| YAB1020R01 | 0.4016 (10.20 mm) | 10 | 0.073 | 0.209 | 0.135 | |
| YAB1030R01 | 0.4055 (10.30 mm) | 10 | 0.074 | 0.209 | 0.135 | |
| YAB1040R01 | 0.4094 (10.40 mm) | 10 | 0.074 | 0.208 | 0.134 | |
| YAB1050R01 | 0.4134 (10.50 mm) | 10 | 0.075 | 0.208 | 0.133 | |
| YAB1060R01 | 0.4173 (10.60 mm) | 10 | 0.076 | 0.209 | 0.133 | |
| YAB1070R01 | 0.4213 (10.70 mm) | 10 | 0.077 | 0.209 | 0.131 | |
| YAB1080R01 | 0.4252 (10.80 mm) | 10 | 0.078 | 0.209 | 0.131 | |
| YAB1090R01 | 0.4291 (10.90 mm) | 10 | 0.078 | 0.209 | 0.131 | |
| YAB1100R01 | 0.4331 (11.00 mm) | 11 | 0.079 | 0.217 | 0.138 | |
| YAB1110R01 | 0.4370 (11.10 mm) | 11 | 0.080 | 0.217 | 0.137 | |
| YAB1120R01 | 0.4409 (11.20 mm) | 11 | 0.080 | 0.216 | 0.136 | |
| YAB1130R01 | 0.4449 (11.30 mm) | 11 | 0.081 | 0.217 | 0.135 | |
| YAB1140R01 | 0.4488 (11.40 mm) | 11 | 0.082 | 0.217 | 0.135 | |
| YAB1150R01 | 0.4528 (11.50 mm) | 11 | 0.082 | 0.217 | 0.134 | |
| YAB1160R01 | 0.4567 (11.60 mm) | 11 | 0.083 | 0.217 | 0.134 | |
| YAB1170R01 | 0.4606 (11.70 mm) | 11 | 0.084 | 0.217 | 0.133 | |
| YAB1180R01 | 0.4646 (11.80 mm) | 11 | 0.085 | 0.217 | 0.132 | |
| YAB1190R01 | 0.4685 (11.90 mm) | 11 | 0.085 | 0.217 | 0.130 | |
| YAB1200R01 | 0.4724 (12.00 mm) | 12 | 0.086 | 0.229 | 0.143 | |
| YAB1210R01 | 0.4764 (12.10 mm) | 12 | 0.087 | 0.228 | 0.142 | |
| YAB1220R01 | 0.4803 (12.20 mm) | 12 | 0.087 | 0.228 | 0.141 | |
| YAB1230R01 | 0.4843 (12.30 mm) | 12 | 0.088 | 0.228 | 0.140 | |
| YAB1240R01 | 0.4882 (12.40 mm) | 12 | 0.089 | 0.228 | 0.139 | |
| YAB1250R01 | 0.4921 (12.50 mm) | 12 | 0.089 | 0.228 | 0.139 | |
| YAB1260R01 | 0.4961 (12.60 mm) | 12 | 0.090 | 0.228 | 0.138 | |
| YAB1270R01 | 0.5000 (12.70 mm) | 12 | 0.091 | 0.228 | 0.137 | |
| YAB1280R01 | 0.5039 (12.80 mm) | 12 | 0.092 | 0.228 | 0.137 | |
| YAB1290R01 | 0.5079 (12.90 mm) | 12 | 0.093 | 0.229 | 0.136 | |
| YAB1300R01 | 0.5118 (13.00 mm) | 13 | 0.093 | 0.236 | 0.143 | |
| YAB1310R01 | 0.5157 (13.10 mm) | 13 | 0.094 | 0.237 | 0.143 | |
| YAB1320R01 | 0.5197 (13.20 mm) | 13 | 0.095 | 0.236 | 0.142 | |
| YAB1330R01 | 0.5236 (13.30 mm) | 13 | 0.095 | 0.236 | 0.141 | |
| YAB1340R01 | 0.5276 (13.40 mm) | 13 | 0.096 | 0.236 | 0.140 | |
| YAB1350R01 | 0.5315 (13.50 mm) | 13 | 0.097 | 0.236 | 0.139 | |
| YAB1360R01 | 0.5354 (13.60 mm) | 13 | 0.097 | 0.236 | 0.139 | |
| YAB1370R01 | 0.5394 (13.70 mm) | 13 | 0.098 | 0.236 | 0.138 | |
| YAB1380R01 | 0.5433 (13.80 mm) | 13 | 0.099 | 0.236 | 0.137 | |
| YAB1390R01 | 0.5472 (13.90 mm) | 13 | 0.100 | 0.236 | 0.137 | |
| YAB1400R01 | 0.5512 (14.00 mm) | 14 | 0.100 | 0.268 | 0.167 | |
| YAB1410R01 | 0.5551 (14.10 mm) | 14 | 0.101 | 0.268 | 0.167 | |
| YAB1420R01 | 0.5591 (14.20 mm) | 14 | 0.102 | 0.268 | 0.166 | |
| YAB1430R01 | 0.5630 (14.30 mm) | 14 | 0.102 | 0.268 | 0.165 | |
| YAB1440R01 | 0.5669 (14.40 mm) | 14 | 0.103 | 0.268 | 0.165 | |
| YAB1450R01 | 0.5709 (14.50 mm) | 14 | 0.104 | 0.268 | 0.164 | |
| YAB1460R01 | 0.5748 (14.60 mm) | 14 | 0.105 | 0.268 | 0.163 | |
| YAB1470R01 | 0.5787 (14.70 mm) | 14 | 0.106 | 0.268 | 0.162 | |
| YAB1480R01 | 0.5827 (14.80 mm) | 14 | 0.106 | 0.268 | 0.162 | |
| YAB1490R01 | 0.5866 (14.90 mm) | 14 | 0.107 | 0.268 | 0.161 | |
| YAB1500R01 | 0.5906 (15.00 mm) | 15 | 0.107 | 0.291 | 0.184 | |
| YAB1510R01 | 0.5945 (15.10 mm) | 15 | 0.108 | 0.291 | 0.183 | |
| YAB1520R01 | 0.5984 (15.20 mm) | 15 | 0.109 | 0.291 | 0.182 | |
| YAB1530R01 | 0.6024 (15.30 mm) | 15 | 0.109 | 0.291 | 0.182 | |
| YAB1540R01 | 0.6063 (15.40 mm) | 15 | 0.110 | 0.291 | 0.181 | |
| YAB1550R01 | 0.6102 (15.50 mm) | 15 | 0.111 | 0.291 | 0.180 | |
| YAB1560R01 | 0.6142 (15.60 mm) | 15 | 0.112 | 0.292 | 0.180 | |
| YAB1570R01 | 0.6181 (15.70 mm) | 15 | 0.113 | 0.291 | 0.179 | |
| YAB1580R01 | 0.6220 (15.80 mm) | 15 | 0.113 | 0.291 | 0.178 | |
| YAB1590R01 | 0.6260 (15.90 mm) | 15 | 0.114 | 0.292 | 0.178 | |
| YAB1600R01 | 0.6299 (16.00 mm) | 16 | 0.115 | 0.311 | 0.197 | |
| YAB1610R01 | 0.6339 (16.10 mm) | 16 | 0.115 | 0.311 | 0.196 | |
| YAB1620R01 | 0.6378 (16.20 mm) | 16 | 0.116 | 0.311 | 0.195 | |
| YAB1630R01 | 0.6417 (16.30 mm) | 16 | 0.117 | 0.311 | 0.194 | |
| YAB1640R01 | 0.6457 (16.40 mm) | 16 | 0.117 | 0.311 | 0.194 | |
| YAB1650R01 | 0.6496 (16.50 mm) | 16 | 0.118 | 0.311 | 0.193 | |
| YAB1660R01 | 0.6535 (16.60 mm) | 16 | 0.119 | 0.311 | 0.192 | |
| YAB1670R01 | 0.6575 (16.70 mm) | 16 | 0.120 | 0.311 | 0.191 | |
| YAB1680R01 | 0.6614 (16.80 mm) | 16 | 0.121 | 0.311 | 0.191 | |
| YAB1690R01 | 0.6654 (16.90 mm) | 16 | 0.121 | 0.311 | 0.190 | |
| YAB1700R01 | 0.6693 (17.00 mm) | 17 | 0.122 | 0.292 | 0.170 | |
| YAB1710R01 | 0.6732 (17.10 mm) | 17 | 0.122 | 0.291 | 0.169 | |
| YAB1720R01 | 0.6772 (17.20 mm) | 17 | 0.123 | 0.291 | 0.168 | |
| YAB1730R01 | 0.6811 (17.30 mm) | 17 | 0.124 | 0.291 | 0.167 | |
| YAB1740R01 | 0.6850 (17.40 mm) | 17 | 0.125 | 0.292 | 0.167 | |
| YAB1750R01 | 0.6890 (17.50 mm) | 17 | 0.125 | 0.291 | 0.166 | |
| YAB1760R01 | 0.6929 (17.60 mm) | 17 | 0.126 | 0.291 | 0.165 | |
| YAB1770R01 | 0.6969 (17.70 mm) | 17 | 0.127 | 0.292 | 0.165 | |
| YAB1780R01 | 0.7008 (17.80 mm) | 17 | 0.128 | 0.292 | 0.164 | |
| YAB1790R01 | 0.7047 (17.90 mm) | 17 | 0.128 | 0.291 | 0.163 | |
| YAB1800R01 | 0.7087 (18.00 mm) | 18 | 0.129 | 0.327 | 0.198 | |
| YAB1810R01 | 0.7126 (18.10 mm) | 18 | 0.130 | 0.327 | 0.197 | |
| YAB1820R01 | 0.7165 (18.20 mm) | 18 | 0.130 | 0.326 | 0.196 | |
| YAB1830R01 | 0.7205 (18.30 mm) | 18 | 0.131 | 0.327 | 0.196 | |
| YAB1840R01 | 0.7244 (18.40 mm) | 18 | 0.132 | 0.327 | 0.195 | |
| YAB1850R01 | 0.7283 (18.50 mm) | 18 | 0.133 | 0.327 | 0.194 | |
| YAB1860R01 | 0.7323 (18.60 mm) | 18 | 0.133 | 0.327 | 0.194 | |
| YAB1870R01 | 0.7362 (18.70 mm) | 18 | 0.134 | 0.327 | 0.193 | |
| YAB1880R01 | 0.7402 (18.80 mm) | 18 | 0.135 | 0.327 | 0.192 | |
| YAB1890R01 | 0.7441 (18.90 mm) | 18 | 0.135 | 0.326 | 0.191 | |
| YAB1900R01 | 0.7480 (19.00 mm) | 19 | 0.136 | 0.317 | 0.198 | |
| YAB1905R01 | 0.7500 (19.05 mm) | 19 | 0.137 | 0.335 | 0.198 | |
| YAB1910R01 | 0.7520 (19.10 mm) | 19 | 0.137 | 0.335 | 0.198 | |
| YAB1920R01 | 0.7559 (19.20 mm) | 19 | 0.137 | 0.335 | 0.197 | |
| YAB1930R01 | 0.7598 (19.30 mm) | 19 | 0.138 | 0.334 | 0.196 | |
| YAB1940R01 | 0.7638 (19.40 mm) | 19 | 0.139 | 0.335 | 0.196 | |
| YAB1950R01 | 0.7677 (19.50 mm) | 19 | 0.140 | 0.335 | 0.195 | |
| YAB1960R01 | 0.7717 (19.60 mm) | 19 | 0.141 | 0.335 | 0.194 | |
| YAB1970R01 | 0.7756 (19.70 mm) | 19 | 0.141 | 0.335 | 0.193 | |
| YAB1980R01 | 0.7795 (19.80 mm) | 19 | 0.142 | 0.335 | 0.193 | |
| YAB1990R01 | 0.7835 (19.90 mm) | 19 | 0.143 | 0.335 | 0.192 | |
| YAB2000R01 | 0.7874 (20.00 mm) | 20 | 0.143 | 0.366 | 0.223 | |
| YAB2010R01 | 0.7913 (20.10 mm) | 20 | 0.144 | 0.366 | 0.222 | |
| YAB2020R01 | 0.7953 (20.20 mm) | 20 | 0.145 | 0.366 | 0.221 | |
| YAB2030R01 | 0.7992 (20.30 mm) | 20 | 0.145 | 0.366 | 0.221 | |
| YAB2040R01 | 0.8031 (20.40 mm) | 20 | 0.146 | 0.366 | 0.220 | |
| YAB2050R01 | 0.8071 (20.50 mm) | 20 | 0.147 | 0.366 | 0.219 | |
| YAB2060R01 | 0.8110 (20.60 mm) | 20 | 0.148 | 0.366 | 0.219 | |
| YAB2070R01 | 0.8150 (20.70 mm) | 20 | 0.148 | 0.366 | 0.218 | |
| YAB2080R01 | 0.8189 (20.80 mm) | 20 | 0.149 | 0.366 | 0.217 | |
| YAB2090R01 | 0.8228 (20.90 mm) | 20 | 0.150 | 0.367 | 0.217 | |
| YAB2100R01 | 0.8268 (21.00 mm) | 21 | 0.150 | 0.374 | 0.224 | |
| YAB2110R01 | 0.8307 (21.10 mm) | 21 | 0.151 | 0.374 | 0.223 | |
| YAB2120R01 | 0.8346 (21.20 mm) | 21 | 0.153 | 0.374 | 0.221 | |
| YAB2130R01 | 0.8386 (21.30 mm) | 21 | 0.153 | 0.374 | 0.221 | |
| YAB2140R01 | 0.8425 (21.40 mm) | 21 | 0.153 | 0.374 | 0.221 | |
| YAB2150R01 | 0.8465 (21.50 mm) | 21 | 0.154 | 0.374 | 0.220 | |
| YAB2160R01 | 0.8504 (21.60 mm) | 21 | 0.155 | 0.374 | 0.219 | |
| YAB2170R01 | 0.8543 (21.70 mm) | 21 | 0.156 | 0.374 | 0.219 | |
| YAB2180R01 | 0.8583 (21.80 mm) | 21 | 0.156 | 0.374 | 0.218 | |
| YAB2190R01 | 0.8622 (21.90 mm) | 21 | 0.157 | 0.374 | 0.217 | |
| YAB2200R01 | 0.8661 (22.00 mm) | 22 | 0.158 | 0.406 | 0.248 | |
| YAB2210R01 | 0.8701 (22.10 mm) | 22 | 0.158 | 0.406 | 0.247 | |
| YAB2220R01 | 0.8740 (22.20 mm) | 22 | 0.158 | 0.406 | 0.248 | |
| YAB2222R01 | 0.8748 (22.22 mm) | 22 | 0.159 | 0.406 | 0.247 | |
| YAB2230R01 | 0.8780 (22.30 mm) | 22 | 0.160 | 0.406 | 0.246 | |
| YAB2240R01 | 0.8819 (22.40 mm) | 22 | 0.161 | 0.406 | 0.245 | |
| YAB2250R01 | 0.8858 (22.50 mm) | 22 | 0.161 | 0.406 | 0.245 | |
| YAB2260R01 | 0.8898 (22.60 mm) | 22 | 0.162 | 0.406 | 0.244 | |
| YAB2270R01 | 0.8937 (22.70 mm) | 22 | 0.163 | 0.406 | 0.243 | |
| YAB2280R01 | 0.8976 (22.80 mm) | 22 | 0.163 | 0.405 | 0.242 | |
| YAB2290R01 | 0.9016 (22.90 mm) | 22 | 0.164 | 0.405 | 0.241 | |
| YAB2300R01 | 0.9055 (23.00 mm) | 23 | 0.165 | 0.409 | 0.244 | |
| YAB2310R01 | 0.9094 (23.10 mm) | 23 | 0.165 | 0.409 | 0.244 | |
| YAB2320R01 | 0.9134 (23.20 mm) | 23 | 0.166 | 0.409 | 0.243 | |
| YAB2330R01 | 0.9173 (23.30 mm) | 23 | 0.167 | 0.409 | 0.243 | |
| YAB2340R01 | 0.9213 (23.40 mm) | 23 | 0.168 | 0.409 | 0.242 | |
| YAB2350R01 | 0.9252 (23.50 mm) | 23 | 0.169 | 0.410 | 0.241 | |
| YAB2360R01 | 0.9291 (23.60 mm) | 23 | - | - | - | |
| YAB2370R01 | 0.9331 (23.70 mm) | 23 | 0.170 | 0.409 | 0.240 | |
| YAB2380R01 | 0.9370 (23.80 mm) | 23 | 0.171 | 0.410 | 0.239 | |
| YAB2390R01 | 0.9409 (23.90 mm) | 23 | 0.171 | 0.409 | 0.238 | |
| YAB2400R01 | 0.9449 (24.00 mm) | 24 | 0.172 | 0.425 | 0.235 | |
| YAB2410R01 | 0.9449 (24.00 mm) | 24 | 0.173 | 0.425 | 0.252 | |
| YAB2420R01 | 0.9528 (24.20 mm) | 24 | 0.173 | 0.425 | 0.252 | |
| YAB2430R01 | 0.9567 (24.30 mm) | 24 | 0.174 | 0.425 | 0.251 | |
| YAB2440R01 | 0.9606 (24.40 mm) | 24 | 0.175 | 0.425 | 0.250 | |
| YAB2450R01 | 0.9646 (24.50 mm) | 24 | 0.176 | 0.425 | 0.250 | |
| YAB2460R01 | 0.9685 (24.60 mm) | 24 | 0.176 | 0.425 | 0.249 | |
| YAB2470R01 | 0.9724 (24.70 mm) | 24 | 0.177 | 0.425 | 0.248 | |
| YAB2480R01 | 0.9764 (24.80 mm) | 24 | 0.178 | 0.425 | 0.248 | |
| YAB2490R01 | 0.9803 (24.90 mm) | 24 | 0.178 | 0.425 | 0.247 | |
| YAB2500R01 | 0.9843 (25.00 mm) | 25 | 0.179 | 0.433 | 0.254 | |
| YAB2510R01 | 0.9882 (25.10 mm) | 25 | 0.180 | 0.433 | 0.253 | |
| YAB2520R01 | 0.9921 (25.20 mm) | 25 | 0.181 | 0.433 | 0.252 | |
| YAB2530R01 | 0.9961 (25.30 mm) | 25 | 0.181 | 0.433 | 0.252 | |
| YAB2540R01 | 1.0000 (25.40 mm) | 25 | 0.182 | 0.433 | 0.251 | |
| YAB2550R01 | 1.0039 (25.50 mm) | 25 | 0.183 | 0.433 | 0.250 | |
| YAB2560R01 | 1.0079 (25.60 mm) | 25 | 0.183 | 0.433 | 0.250 | |
| YAB2570R01 | 1.0118 (25.70 mm) | 25 | 0.184 | 0.433 | 0.249 | |
| YAB2580R01 | 1.0157 (25.80 mm) | 25 | 0.185 | 0.433 | 0.248 | |
| YAB2590R01 | 1.0197 (25.90 mm) | 25 | 0.185 | 0.433 | 0.248 |
