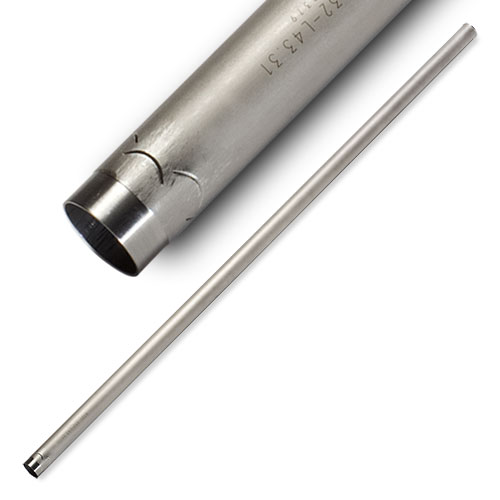

Series: BTDI
Product Series Features:
- BTA DTS Tubes - Inner
- Double Tube System Tubes - Inner
- Ø.472-1.693" (12.0-43.0 mm)
EDP |
Part Number |

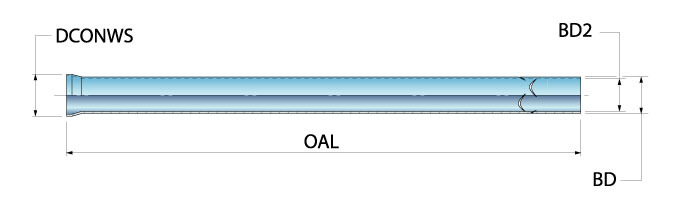

DCONWS Connection Dia. Workpiece Side |
DCONWS2 Connection Dia. Workpiece Side 2 |
CCWS Connection Code Workpiece Side |
OAL Overall Length |
BD Body Dia. |
BD2 Body Dia. 2 |
|
|---|---|---|---|---|---|---|---|---|
| 4849858 | BTDI012-L25.984 | 0.354 | 0.472 | DE4-18 | 25.984 | 12.00 mm | 0.354 | |
| 4837046 | BTDI012-L43.307 | 0.354 | 0.472 | DE4-18 | 43.307 | 12.00 mm | 0.354 | |
| 4849859 | BTDI014-L25.984 | 0.433 | 0.551 | DE4-19.5 | 26.248 | 14.00 mm | 0.433 | |
| 4849860 | BTDI014-L43.307 | 0.433 | 0.551 | DE4-19.5 | 43.310 | 14.00 mm | 0.433 | |
| 4837047 | BTDI015-L43.307 | 0.472 | 0.591 | DE4-21.5 | 43.307 | 15.00 mm | 0.472 | |
| 4849861 | BTDI016-L25.984 | 0.512 | 0.630 | DE4-23.5 | 25.984 | 16.00 mm | 0.512 | |
| 4833938 | BTDI016-L43.307 | 0.512 | 0.630 | DE4-23.5 | 43.307 | 16.00 mm | 0.512 | |
| 4809931 | BTDI018-L25.984 | 0.551 | 0.709 | DE4-26 | 25.984 | 18.00 mm | 0.551 | |
| 4801280 | BTDI018-L43.307 | 0.551 | 0.709 | DE4-26 | 43.307 | 18.00 mm | 0.551 | |
| 4837041 | BTDI020-L25.984 | 0.630 | 0.787 | DE4-28 | 25.984 | 20.00 mm | 0.630 | |
| 4837049 | BTDI020-L43.307 | 0.630 | 0.787 | DE4-28 | 43.307 | 20.00 mm | 0.630 | |
| 4801400 | BTDI022-L25.984 | 0.709 | 0.866 | DE4-30.5 | 25.984 | 22.00 mm | 0.709 | |
| 4833946 | BTDI022-L43.307 | 0.709 | 0.866 | DE4-30.5 | 43.307 | 22.00 mm | 0.709 | |
| 4809983 | BTDI024-L25.984 | 0.787 | 0.945 | DE4-33 | 25.984 | 24.00 mm | 0.787 | |
| 4809987 | BTDI024-L43.307 | 0.787 | 0.945 | DE4-33 | 43.307 | 24.00 mm | 0.787 | |
| 4837042 | BTDI026-L25.984 | 0.866 | 1.024 | DE4-35.5 | 25.984 | 26.00 mm | 0.866 | |
| 4829998 | BTDI026-L43.31 | 0.866 | 1.024 | DE4-35.5 | 43.307 | 26.000 | 0.866 | |
| 4810020 | BTDI029-L25.984 | 0.984 | 1.142 | DE4-39 | 25.984 | 29.00 mm | 0.984 | |
| 4833953 | BTDI029-L43.307 | 0.984 | 1.142 | DE4-39 | 43.307 | 29.00 mm | 0.984 | |
| 4833907 | BTDI032-L25.984 | 1.102 | 1.260 | DE4-42.5 | 25.984 | 32.00 mm | 1.102 | |
| 4837053 | BTDI032-L43.307 | 1.102 | 1.260 | DE4-42.5 | 43.307 | 32.00 mm | 1.102 | |
| 4834071 | BTDI035-L25.984 | 1.181 | 1.378 | DE4-46.5 | 25.984 | 35.00 mm | 1.181 | |
| 4837055 | BTDI035-L43.307 | 1.181 | 1.378 | DE4-46.5 | 43.307 | 35.00 mm | 1.181 | |
| 4837044 | BTDI039-L25.984 | 1.339 | 1.535 | DE4-51 | 25.984 | 39.00 mm | 1.339 | |
| 4837057 | BTDI039-L43.307 | 1.339 | 1.535 | DE4-51 | 43.307 | 39.00 mm | 1.339 | |
| 4802229 | BTDI043A-L25.984 | 1.496 | 1.693 | DE4-55.5 | 25.984 | 43.00 mm | 1.496 | |
| 4801144 | BTDI043A-L43.307 | 1.496 | 1.693 | DE4-55.5 | 43.307 | 43.00 mm | 1.496 |
