Series: C*AD*SK
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- DIN69871 (SK) V-Flange
- C-Adapter (ISO 26623-2)
- Quick Change Adapter
EDP |
Part Number |
CCMS Connection Code Machine Side |
CCWS Connection Code Workpiece Side |
LPR Protruding Length |
LB Body Length |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|
| 4510333 | C4ADSKA40X30 | DIN69871-40 | C4 | 30.00 mm | 11.00 mm | NA | |||
| 3423094 | C5ADSKA40X40 | DIN69871-40 | C5 | 40.00 mm | 21.00 mm | NA | |||
| 4510334 | C5ADSKA50X30 | DIN69871-50 | C5 | 30.00 mm | 11.00 mm | NA | |||
| 4510253 | C6ADSKA50X30 | DIN69871-50 | C6 | 30.00 mm | 11.00 mm | NA | |||
| 4510255 | C8ADSKA50X70 | DIN69871-50 | C8 | 70.00 mm | 51.00 mm | NA |
Notes:
- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
Recommended Tightening Torque for Center Bolt Clamping

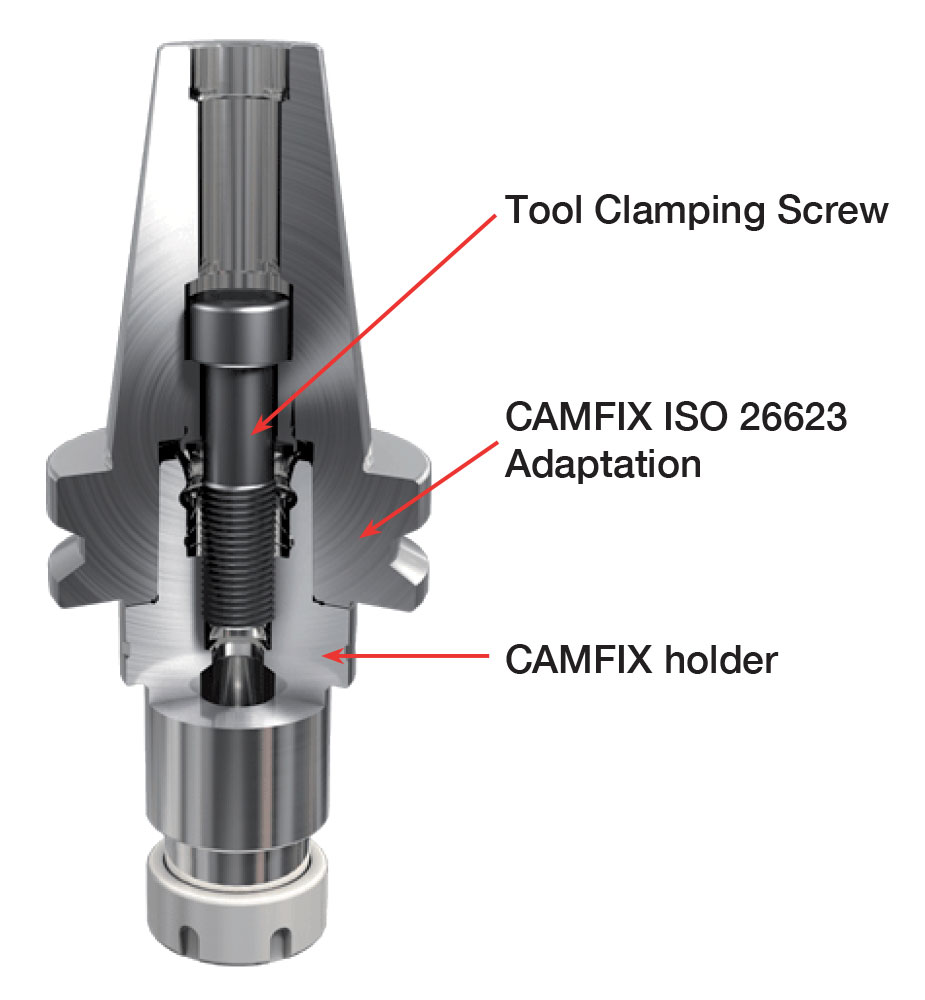

Spindle Adapter
(Click image to enlarge)
(Click image to enlarge)Center Bolt Clamping
| Connection Size |
Torque N•m |
Torque ft. lb. |
| C3 | 45 | 33 |
| C4 | 55 | 40 |
| C5 | 95 | 70 |
| C6 | 170 | 125 |
| C8 | 170 | 125 |
| C10 | 380 | 277 |
