Series: CSBP
Product Series Features:

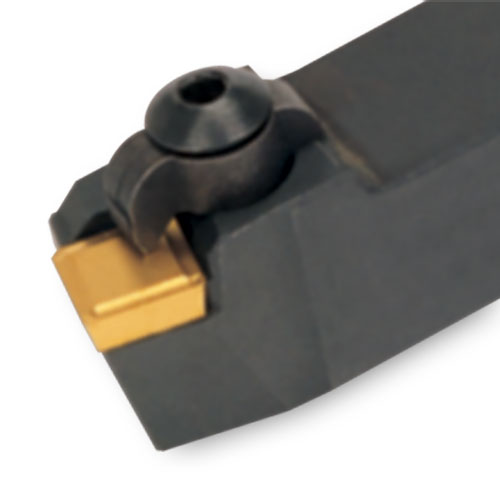

- Top-Clamp Holder for External Turning Holder Accepts Positive 11° Clearance Square Inserts

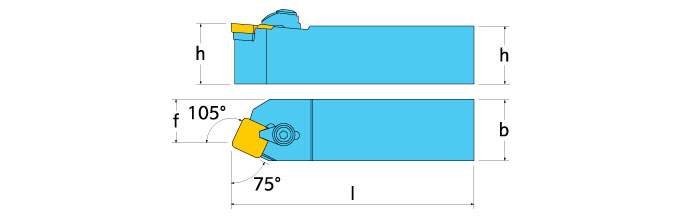

EDP |
Designation |
b Shank Width |
l Functional Length |
f Width |
|
|---|---|---|---|---|---|
| NA | CSBPL10-3B | 0.625 | 4.500 | 0.531 | |
| NA | CSBPL12-3B | 0.750 | 4.500 | 0.658 | |
| NA | CSBPL12-4B | 0.750 | 4.500 | 0.627 | |
| NA | CSBPL16-4D | 1.000 | 6.000 | 0.877 | |
| NA | CSBPL20-6D | 1.250 | 6.000 | 1.065 | |
| NA | CSBPR12-3B | 0.750 | 4.500 | 0.658 | |
| 3671775 | CSBPR12-4B | 0.750 | 4.500 | 0.627 | |
| NA | CSBPR20-6D | 1.250 | 6.000 | 1.065 |
