Series: TNGU22 - Multi-Purpose Insert

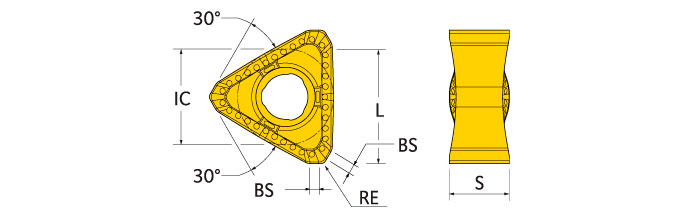

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Designed for multiple materials and applications
- 6 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| TNGU2207PNTN | Multi-Purpose | 0.093 | 0.086 | 0.500 | 0.315 | 3 | Neutral |
