Series: APKT12 - Multi-Purpose Insert

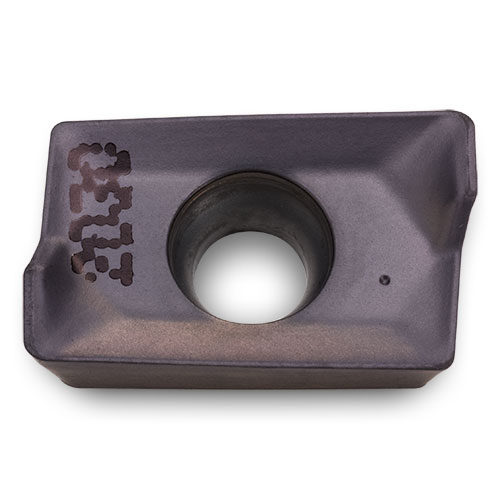

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Diverse corner configurations
- Designed for multiple materials and applications
- 2 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| APKT120308R | Multi-Purpose | 0.031 | 0.040 | 0.470 | 0.480 | 0.312 | 0.150 | 2 | Right | |
| APKT120316R | Multi-Purpose | 0.062 | 0.020 | 0.470 | 0.480 | 0.312 | 0.150 | 2 | Right | |
| APKT120324R | Multi-Purpose | 0.093 | - | 0.470 | 0.490 | 0.312 | 0.150 | 2 | Right | |
| APKT120332R | Multi-Purpose | 0.125 | - | 0.470 | 0.490 | 0.312 | 0.140 | 2 | Right | |
| APKT120364R | Multi-Purpose | 0.250 | - | 0.470 | 0.490 | 0.312 | 0.140 | 1 | Right |
