Home > ISO CBN Inserts > Series #: CCGW-LS

Series: CCGW-LS

Product Series Features:

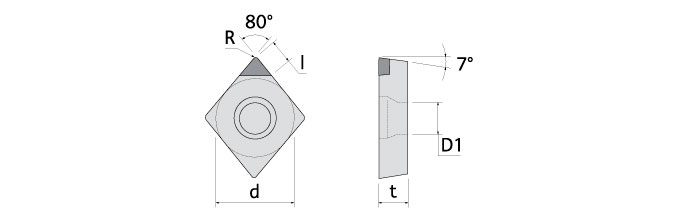

Positive 7° clearance 80° rhombic CBN tipped inserts

Choose a Section

	ANSI Number	ISO Number	IC Inscribed Circle Dia.	RE Corner Radius	L Cutting Edge Length	LE Cutting Edge Eff. Length	S Thickness	D1 Fixing Hole Dia.	NOI Number of Indexes
	CCGW21.50.5LS	CCGW060202LS	0.250	0.008	0.254	0.094	0.094	0.110	1
	CCGW21.50.5LS2	CCGW060202LS2	0.250	0.008	0.254	0.087	0.094	0.110	2
	CCGW21.51LS	CCGW060204LS	0.250	0.016	0.254	0.094	0.094	0.110	1
	CCGW21.51LS2	CCGW060204LS2	0.250	0.016	0.254	0.083	0.094	0.110	2
	CCGW21.52LS2	CCGW060208LS2	0.250	0.031	0.254	0.083	0.094	0.110	2

Notes:

LS - Single tip
LS2 - Double tip

	ANSI Number	ISO Number	IC Inscribed Circle Dia.	RE Corner Radius	L Cutting Edge Length	LE Cutting Edge Eff. Length	S Thickness	D1 Fixing Hole Dia.	NOI Number of Indexes
	CCGW21.50.5LS	CCGW060202LS	0.250	0.008	0.254	0.094	0.094	0.110	1
	CCGW21.50.5LS2	CCGW060202LS2	0.250	0.008	0.254	0.087	0.094	0.110	2
	CCGW21.51LS	CCGW060204LS	0.250	0.016	0.254	0.094	0.094	0.110	1
	CCGW21.51LS2	CCGW060204LS2	0.250	0.016	0.254	0.083	0.094	0.110	2
	CCGW21.52LS2	CCGW060208LS2	0.250	0.031	0.254	0.083	0.094	0.110	2
	CCGW32.51LS	CCGW09T304LS	0.375	0.016	0.382	0.094	0.156	0.173	1
	CCGW32.51LS2	CCGW09T304LS2	0.375	0.016	0.382	0.087	0.157	0.173	2
	CCGW32.51WZ-LS	CCGW 09T304WZ-LS	0.375	0.016	0.382	0.094	0.156	0.173	1
	CCGW32.51WZ-LS2	CCGW 09T304WZ-LS2	0.375	0.016	0.382	0.094	0.156	0.173	2
	CCGW32.51WZ-LS2	CCGW09T304WZ-LS2	0.375	0.016	0.382	0.087	0.157	0.173	2
	CCGW32.52LS	CCGW09T308LS	0.375	0.031	0.382	0.094	0.156	0.173	1
	CCGW32.52LS2	CCGW09T308LS2	0.375	0.031	0.382	0.091	0.157	0.173	2
	CCGW32.52WZ-LS	CCGW09T308WZ-LS	0.375	0.031	0.382	0.094	0.156	0.173	1
	CCGW32.52WZ-LS2	CCGW09T308WZ-LS2	0.375	0.031	0.382	0.091	0.157	0.173	2
	CCGW431LS	CCGW120404LS	0.500	0.016	0.508	0.102	0.187	0.217	1
	CCGW431LS2	CCGW120404LS2	0.500	0.016	0.508	0.083	0.187	0.216	2
	CCGW432LS	CCGW120408LS	0.500	0.031	0.508	0.098	0.187	0.217	1
	CCGW432LS2	CCGW120408LS2	0.500	0.031	0.508	0.083	0.187	0.216	2

T-Turn Line, CBN Grades
