Series: SNGA LN-10

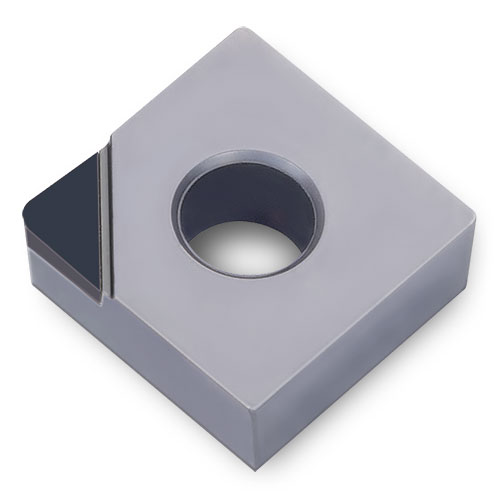

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Square, PCD-tipped inserts

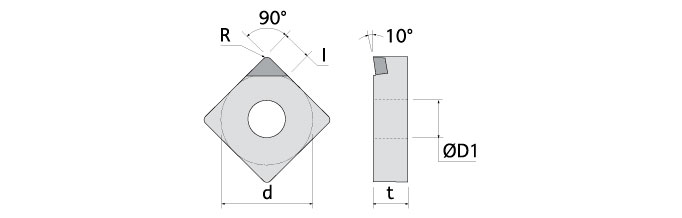

ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
LE Cutting Edge Eff. Length |
S Thickness |
|
|---|---|---|---|---|---|---|---|
| SNGA432LN-10 | SNGA120408LN-10 | 1 | 0.500 | 0.031 | 0.157 | 0.187 | |
| SNGA433LN-10 | SNGA120412LN-10 | 1 | 0.500 | 0.047 | 0.157 | 0.187 |
