Series: CSDPN

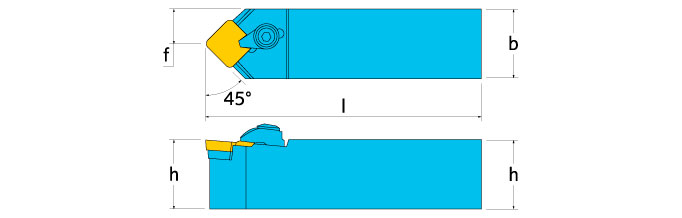

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Top-Clamp External Turning Holder for Positive 11° Clearance square SP_ inserts
EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
HAND Hand |
MIID Master Insert Identification |
|
|---|---|---|---|---|---|---|---|---|---|
| 3672326 | CSDPN10-3B | 0.625 | 0.625 | 0.625 | 4.5 | 0.313 | Neutral | SPGN090308 | |
| 3672328 | CSDPN12-4B | 0.750 | 0.750 | 0.750 | 4.5 | 0.375 | Neutral | SPGN120308 | |
| 3672329 | CSDPN16-4D | 1.000 | 1.000 | 1.000 | 6.0 | 0.500 | Neutral | SPGN120308 |
