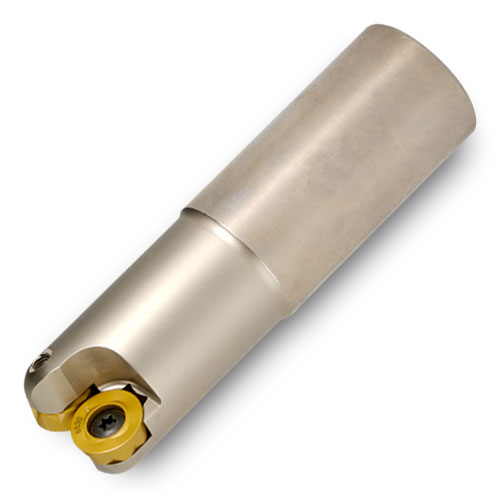

Series: 15B4M (.750" Insert)
Product Series Features:
- Toroid Button End Mill
- .375" Max. Depth of Cut
- .750" Button I.C.

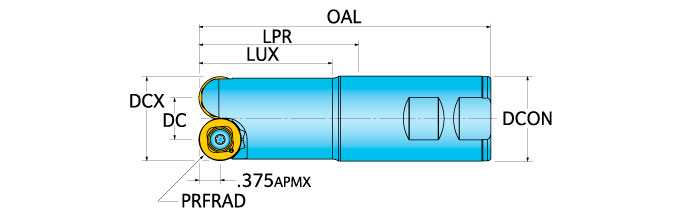

EDP |
Part Number |
DCX Cutting Dia. Max. |
DC Cutting Dia. |
LUX Usable Length Max. |
LPR Protruding Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3027858 | 15B4M-1502586R01 | 1.500 | 0.750 | 2.80 | 2.50 | 5.16 | 2 | 1.5000 | 1.6 | NA | |||
| 3027859 | 15B4M-15035S5R01 | 1.500 | 0.750 | 4.14 | 3.50 | 7.50 | 2 | 1.5000 | 1.6 | NA |
Notes:
- **Note, OBSOLETE product line.
