Series: IXE

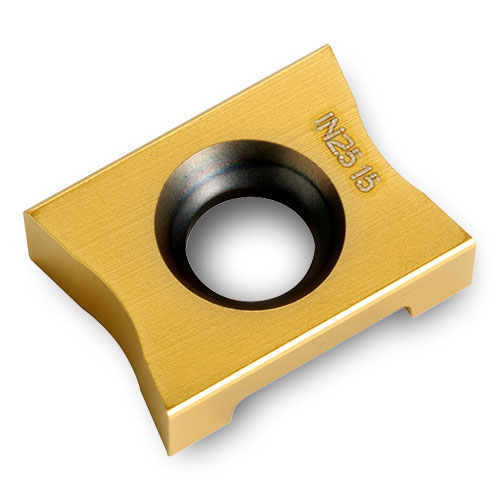

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Milling Insert
Part Number |
Application |
RE Corner Radius |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| IXE412-001 | Multi-Purpose | 0.015 | 0.420 | 0.553 | 0.159 | 4 | Neutral | |
| IXE412-001-P | Sharp & Polished | 0.015 | 0.421 | 0.553 | 0.159 | 4 | Neutral | |
| IXE412-002 | Multi-Purpose | 0.031 | 0.420 | 0.553 | 0.159 | 4 | Neutral | |
| IXE412-002-P | Sharp & Polished | 0.031 | 0.419 | 0.553 | 0.159 | 4 | Neutral | |
| IXE412-003 | Multi-Purpose | 0.062 | 0.417 | 0.552 | 0.159 | 4 | Neutral | |
| IXE413-001 | Multi-Purpose | 0.015 | 0.423 | 0.554 | 0.197 | 4 | Neutral | |
| IXE413-001-P | Sharp & Polished | 0.015 | 0.423 | 0.554 | 0.197 | 4 | Neutral | |
| IXE413-002 | Multi-Purpose | 0.031 | 0.421 | 0.553 | 0.197 | 4 | Neutral | |
| IXE413-002-P | Sharp & Polished | 0.031 | 0.421 | 0.553 | 0.197 | 4 | Neutral | |
| IXE413-003 | Multi-Purpose | 0.062 | 0.419 | 0.553 | 0.197 | 4 | Neutral | |
| IXE414-001 | Multi-Purpose | 0.015 | 0.424 | 0.554 | 0.236 | 4 | Neutral | |
| IXE414-001-P | Sharp & Polished | 0.015 | 0.424 | 0.554 | 0.236 | 4 | Neutral | |
| IXE414-002 | Multi-Purpose | 0.031 | 0.423 | 0.554 | 0.236 | 4 | Neutral | |
| IXE414-002-P | Sharp & Polished | 0.031 | 0.423 | 0.554 | 0.236 | 4 | Neutral | |
| IXE414-003 | Multi-Purpose | 0.062 | 0.421 | 0.553 | 0.236 | 4 | Neutral |
Notes:
- ** 3VJ5V Axial/Radial Slotters are Obsolete**
- ** Refer to Alternate 3VJ4V Slotters(IXH Insert)**
