Series: GCXF

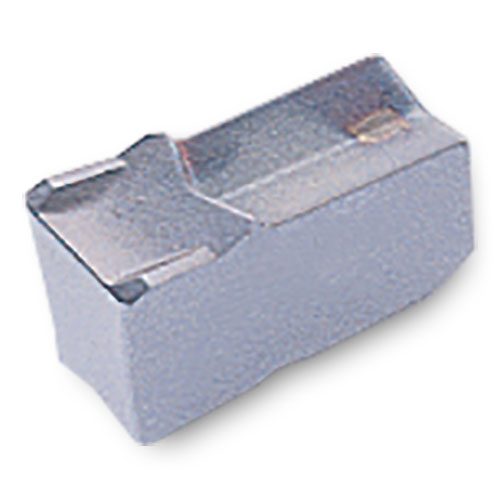

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Slotting inserts
- Fits series 31J
Part Number |
Application |
RE Corner Radius |
CW Cutting Width |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|
| GCXF071601N-E | NA | 0.006 | 0.063 | 1 | Neutral | |
| GCXF071616N-E | NA | 0.031 | 0.063 | 1 | Neutral | |
| GCXF113102N-E | NA | 0.008 | 0.122 | 1 | Neutral | |
| GCXF113131N-E | NA | 0.061 | 0.122 | 1 | Neutral | |
| GCXF114803N-E | NA | 0.011 | 0.188 | 1 | Neutral | |
| GCXF114848N-E | NA | 0.094 | 0.188 | 1 | Neutral | |
| GCXF126403N-E | NA | 0.014 | 0.250 | 1 | Neutral | |
| GCXF126464N-E | NA | 0.125 | 0.250 | 1 | Neutral |
Notes:
- **Note, OBSOLETE product line.
- Refer to the following for stocked alternatives:
- T-Clamp Ultra, series TSC
