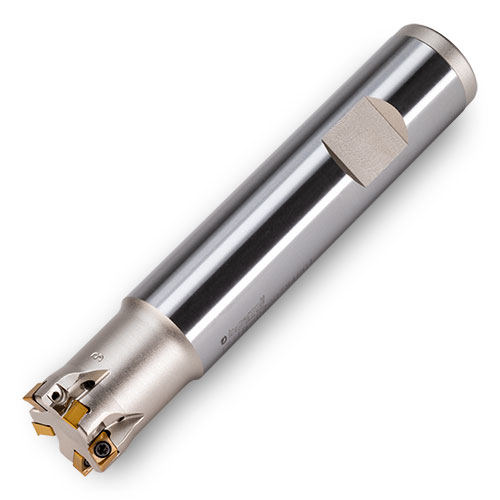

Series: 1TJ1B - 90° & Hi-Feed End Mill
Product Series Features:
- Ø.750-1.500"
- Weldon Shank
- 4 mm Insert with 4 indexes
- 90°: .14" DOC, Hi-Feed: .019" DOC
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corner: .008" .015" .031" R & Hi-Feed

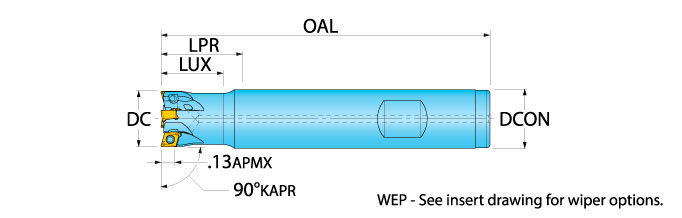

EDP |
Part Number |
DC Cutting Dia. |
LUX Usable Length Max. |
LPR Protruding Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2925843 | 1TJ1B-0700784R01 | 0.750 | 1.00 | 2.00 | 4.00 | 5 | 0.7500 | NA | NA | NA | |
| 2925844 | 1TJ1B-10017E1R01 | 1.000 | 1.25 | 1.75 | 4.75 | 7 | 1.0000 | NA | |||
| 2925845 | 1TJ1B-12020E2R01 | 1.250 | 1.50 | 2.00 | 5.00 | 8 | 1.2500 | NA | NA | NA | |
| 2925846 | 1TJ1B-15025E2R01 | 1.500 | 1.75 | 2.50 | 5.50 | 10 | 1.2500 | NA | NA | NA |
