Series: TRH-GF Brazed Head Indexable Deep Drill

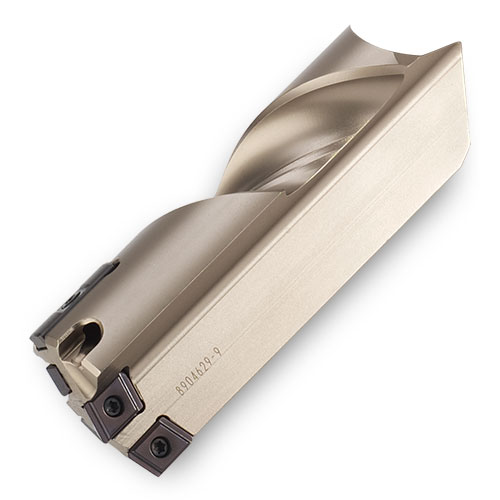

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Indexable Deep GF Drill Brazed on Head
- 3 Insert Design
- Ø1.103 - 1.575" (28.01-40 mm)
- Replacement Head for DeepDuo Drills
EDP |
Part Number |

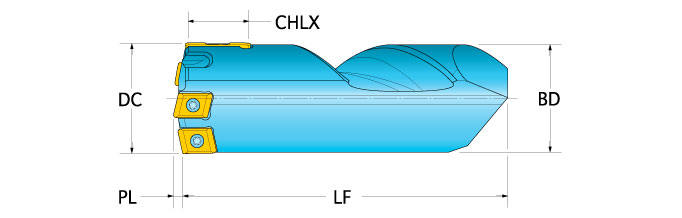

DC Cutting Dia. |
PL Point Length |
CHLX Cross-hole Length Max. |
|
|---|---|---|---|---|---|
| 4851524 | TRH-30.00-FBMKT | 1.181 (30.00 mm) | 2.79 mm | 16.0 mm |
Notes:
- Includes one set of screws, guide pads not included.
