Series: 1EJ5C - 90° End Mill

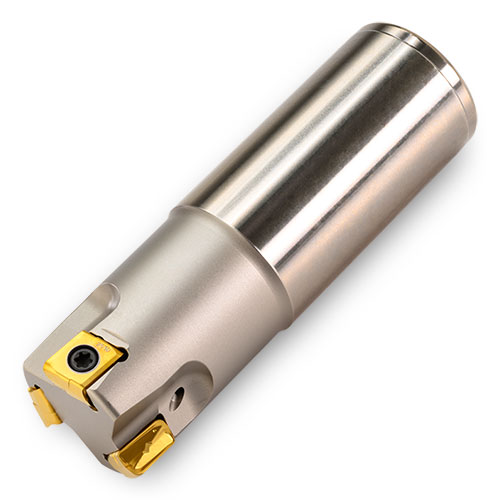

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø1.000-1.500"
- Weldon Shank
- 11 mm insert with 4 indexes
- Insert corners: .031", .062", .125" R
- .385" Max depth of cut

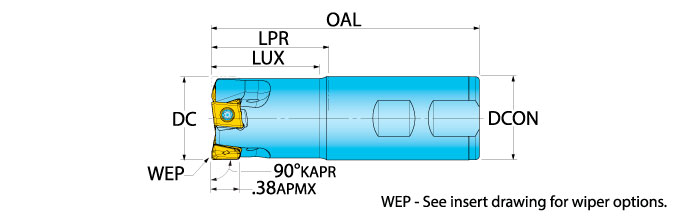

EDP |
Part Number |
DC Cutting Dia. |
LUX Usable Length Max. |
LPR Protruding Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2925694 | 1EJ5C-1001780R01 | 1.000 | 1.55 | 1.75 | 4.00 | 2 | 1.0000 | 2.0 | ||||
| 2925696 | 1EJ5C-1001784R01 | 1.000 | 1.75 | 1.75 | 3.75 | 2 | 0.7500 | 2.0 | ||||
| 2925695 | 1EJ5C-1003780R01 | 1.000 | 3.55 | 3.75 | 6.00 | 2 | 1.0000 | 2.0 | ||||
| 2925701 | 1EJ5C-1201780R01 | 1.250 | 1.75 | 1.75 | 4.00 | 3 | 1.0000 | 1.4 | ||||
| 2925693 | 1EJ5C-1201781R01 | 1.250 | 1.55 | 1.75 | 4.00 | 3 | 1.2500 | 1.4 | ||||
| 2925700 | 1EJ5C-1204281R01 | 1.250 | 4.05 | 4.25 | 6.50 | 3 | 1.2500 | 1.4 | ||||
| 2925703 | 1EJ5C-1501781R01 | 1.500 | 1.55 | 1.75 | 4.00 | 4 | 1.2500 | 1.1 | ||||
| 2925702 | 1EJ5C-1501781R02 | 1.500 | 1.55 | 1.75 | 4.00 | 3 | 1.2500 | 1.1 | ||||
| 2925705 | 1EJ5C-1504281R02 | 1.500 | 4.05 | 4.25 | 6.50 | 3 | 1.2500 | 1.1 |
Notes:
- Insert screw tightening torque: 25-30 in*lb.
- *Images are a representation of the product series and therefore may not be an exact representation of the specific item
