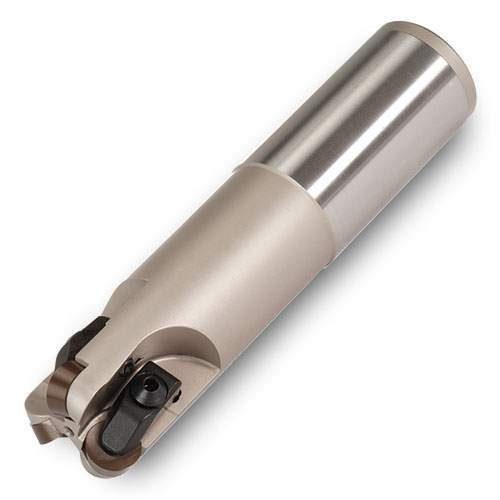

Series: 1DB1H (.500" Insert) Weldon Style
Product Series Features:
- Ceramic Button End Mill
- Inch cutter bodies

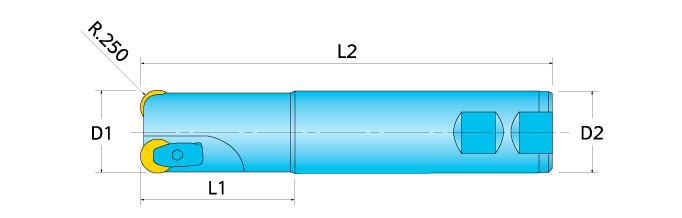

EDP |
Cutter Number |
DCX Cutting Dia. Max. |
LUX Usable Length Max. |
LPR Protruding Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
CSP Coolant |
RMPX Ramp Angle Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 3103590 | 1DB1H-1203181R01 | 1.250 | 3.37 | 3.15 | 5.51 | 3 | 1.250 | No | 12 | |
| 3103415 | 1DB1H-1501581R01 | 1.500 | 1.48 | 1.48 | 3.94 | 3 | 1.250 | No | 10 |
