Series: TMIHN-C - Internal Holder, Carbide Shank
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- For Shallow Grooving
- .500" Shank
- Coolant Thru
EDP |
Part Number |

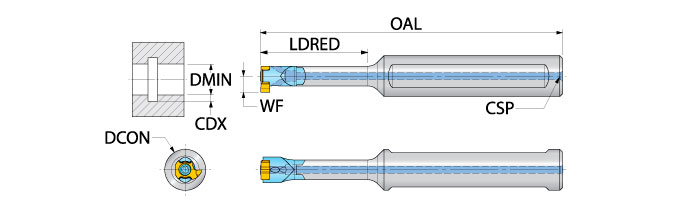

DCON Shank Dia. |
DMIN Min. Bore Dia. |
WF Functional Width |
LDRED Reduced Body Dia. Length |
OAL Overall Length |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 6210678 | TMIHN12.7C-24-8 | 0.500 | 0.394 | 0.185 | 0.94 | 3.60 | ||||
| 6210679 | TMIHN12.7C-32-8 | 0.500 | 0.394 | 0.185 | 1.26 | 4.00 |
Notes:
- CDX: Refer to insert dimension
