Series: 12Y1S (30 mm)
Product Series Features:

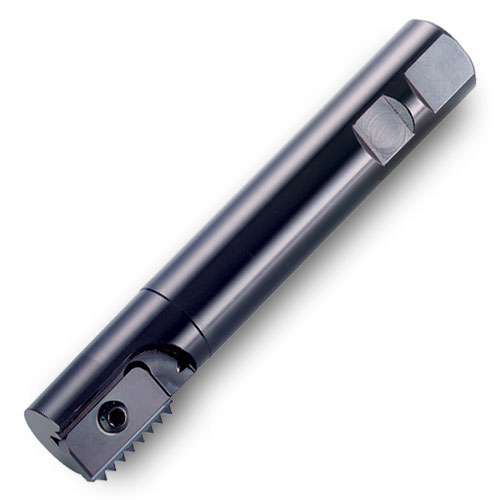

- Indexable Thread Mill Holders

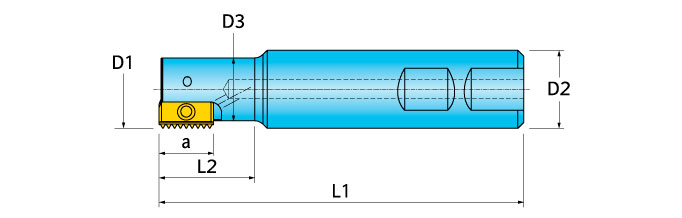

EDP |
Part Number |
a |
D1 |
D2 Shank |
D3 |
L1 Overall Length |
L2 Extension Length |
NOF No. of Flutes |
|
|---|---|---|---|---|---|---|---|---|---|
| 3026152 | 12Y1S-1203780R01 | 1.181 | 1.240 | 1.000 | - | 6.000 | - | 1 | |
| 3026231 | 12Y1S-1502881R01 | 1.181 | 1.580 | 1.250 | 1.180 | 5.120 | 2.800 | 2 |
