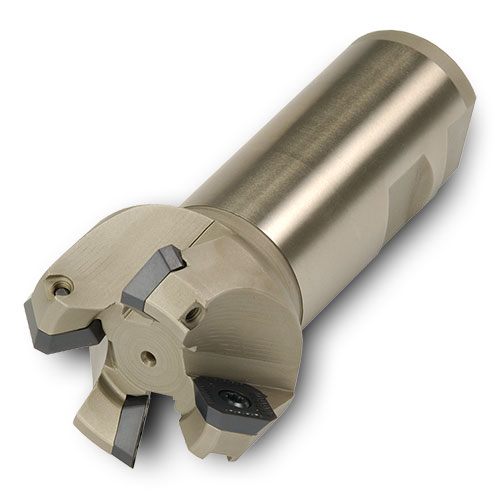

Series: 15N1H - 45° End Mill
Product Series Features:
- Ø1.00" Min. (Weldon)
- 45° Cutting Edge Angle
- 12mm Insert with 4 indexes

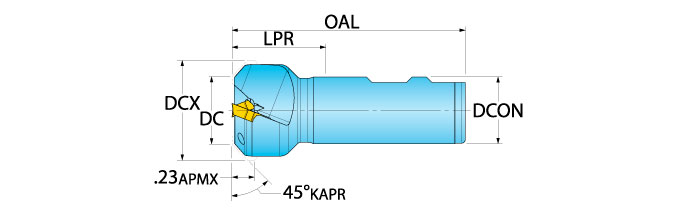

EDP |
Part Number |
DC Cutting Dia. |
DCX Cutting Dia. Max. |
KAPR Cutting Edge Angle |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
LPR Projection Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
CSP Coolant |
DXF File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3023716 | 15N1H-1001180R00 | 1.000 | 1.490 | 45 | 0.230 | - | 1.25 | 3.50 | 2 | 1.0000 | No |
Notes:
- **Note, OBSOLETE product line.
- Refer to the following for stocked alternatives:
- HiPosQuad, series 15N1F
- RotoMill, series 15N1H
- BlackMax, series 19N1A
