Series: FLRP
Product Series Features:
- Double-ended inserts for grooving
- Flat top
- Positive rake
- Full Radius

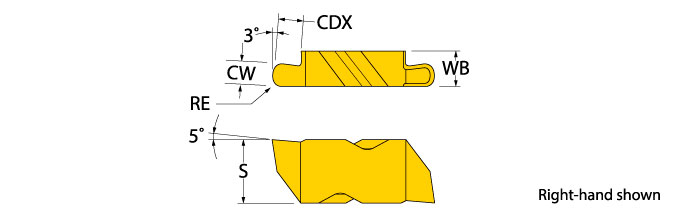

Part Number |
SSC Insert Seat Size |
CW Cutting Width |
RE Corner Radius |
CDX Cutting Depth Max. |
WB Body Width |
IH Insert Hand |
S Thickness |
DMIN Min. Bore Dia. |
FEEDGN Grooving Feed Min. |
FEEDGX Grooving Feed Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| FLRP-3031L | 3 | 0.062 | 0.031 | 0.125 | 0.195 | Left | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3031R | 3 | 0.062 | 0.031 | 0.125 | 0.195 | Right | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3047L | 3 | 0.094 | 0.047 | 0.180 | 0.195 | Left | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3047R | 3 | 0.094 | 0.047 | 0.180 | 0.195 | Right | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3062L | 3 | 0.125 | 0.062 | 0.180 | 0.195 | Left | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3062R | 3 | 0.125 | 0.062 | 0.180 | 0.195 | Right | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3078L | 3 | 0.156 | 0.078 | 0.180 | 0.195 | Left | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3078R | 3 | 0.156 | 0.078 | 0.180 | 0.195 | Right | 0.344 | NA | 0.002 | 0.010 | |
| FLRP-3094L | 3 | 0.189 | 0.094 | 0.180 | 0.195 | Left | 0.344 | NA | 0.002 | 0.010 |
