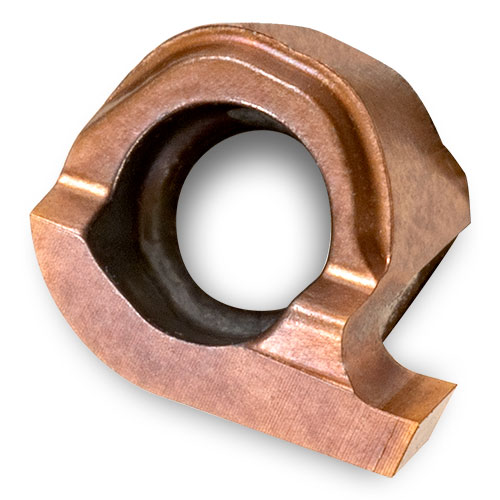

Series: TMIR/L
Product Series Features:
- Precision Single-Ended Insert
- For Internal Shallow Grooving
- Flat Top
Part Number |

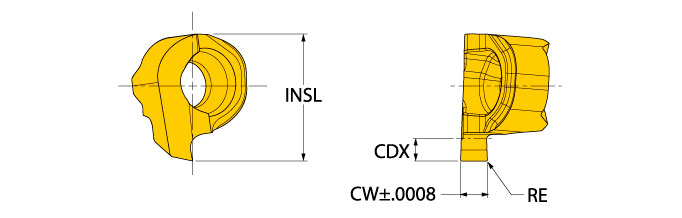

CW Cutting Width |
CDX Cutting Depth Max. |
INSL Insert Length |
IH Insert Hand |
DMIN Min. Bore Dia. |
FEEDGN Grooving Feed Min. |
FEEDGX Grooving Feed Max. |
|
|---|---|---|---|---|---|---|---|---|
| TMIL8-0.50-0.00 | 0.020 | 0.028 | 0.291 | Left | 0.315 | 0.0004 | 0.0012 |
Part Number |
CW Cutting Width |
CDX Cutting Depth Max. |
INSL Insert Length |
IH Insert Hand |
DMIN Min. Bore Dia. |
FEEDGN Grooving Feed Min. |
FEEDGX Grooving Feed Max. |
|
|---|---|---|---|---|---|---|---|---|
| TMIL6-0.50-0.00 | 0.020 | 0.020 | 0.224 | Left | 0.236 | 0.0004 | 0.0012 | |
| TMIL6-1.00-0.00 | 0.039 | 0.039 | 0.224 | Left | 0.236 | 0.0004 | 0.0012 | |
| TMIL6-1.20-0.05 | 0.047 | 0.039 | 0.224 | Left | 0.236 | 0.0004 | 0.0012 | |
| TMIL8-0.50-0.00 | 0.020 | 0.028 | 0.291 | Left | 0.315 | 0.0004 | 0.0012 | |
| TMIL8-1.00-0.00 | 0.039 | 0.059 | 0.291 | Left | 0.315 | 0.0004 | 0.0012 | |
| TMIL8-1.50-0.05 | 0.059 | 0.059 | 0.291 | Left | 0.315 | 0.0004 | 0.0012 | |
| TMIL8-2.00-0.10 | 0.079 | 0.059 | 0.291 | Left | 0.315 | 0.0004 | 0.0012 | |
| TMIR6-0.50-0.00 | 0.020 | 0.020 | 0.224 | Right | 0.236 | 0.0004 | 0.0012 | |
| TMIR6-1.00-0.00 | 0.039 | 0.039 | 0.224 | Right | 0.236 | 0.0004 | 0.0012 | |
| TMIR6-1.20-0.05 | 0.047 | 0.039 | 0.224 | Right | 0.236 | 0.0004 | 0.0012 | |
| TMIR8-0.50-0.00 | 0.020 | 0.028 | 0.291 | Right | 0.315 | 0.0004 | 0.0012 | |
| TMIR8-1.00-0.00 | 0.039 | 0.059 | 0.291 | Right | 0.315 | 0.0004 | 0.0012 | |
| TMIR8-1.50-0.05 | 0.059 | 0.059 | 0.291 | Right | 0.315 | 0.0004 | 0.0012 | |
| TMIR8-2.00-0.10 | 0.079 | 0.059 | 0.291 | Right | 0.315 | 0.0004 | 0.0012 |
