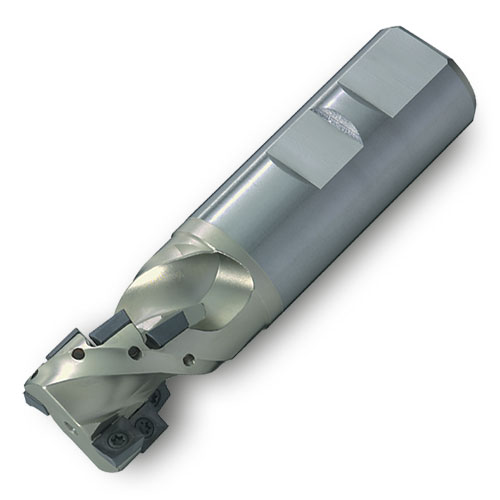

Series: 22J3M - 90° Fluted End Mill
Product Series Features:
- Ø.750-1.00"
- Weldon Shank
- 6 mm Insert with 2 indexes
- All Eff. / RH Helix
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: S
- Insert corners: SC: .015" .031" R

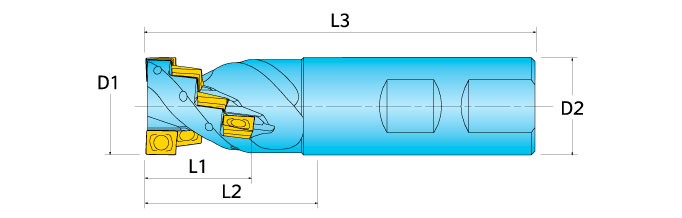

EDP |
Part Number |
DC Cutting Dia. |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
|
|---|---|---|---|---|---|---|---|---|
| 3040333 | 22J3M-0701584R01 | 0.750 | 0.810 | 1.50 | 3.30 | 6 | 0.7500 |
Notes:
- **Note, OBSOLETE product series.
- Refer to the following for stocked alternatives:
EDP |
Part Number |
DC Cutting Dia. |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
|
|---|---|---|---|---|---|---|---|---|
| 3040333 | 22J3M-0701584R01 | 0.750 | 0.810 | 1.50 | 3.30 | 6 | 0.7500 | |
| 3040334 | 22J3M-1002080R01 | 1.000 | 1.080 | 1.75 | 4.00 | 8 | 1.0000 |
