Series: TW
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Double Flat Weldon Shank (Metric)
- Drive Shank for use with TSC Slitters
- Axial Drive 4 Pin Style Mount
- Interchangeable with Inch and Metric milling heads
- Enables machining with larger overhang
- Useful in deep cavity machining applications
EDP |
Part Number |

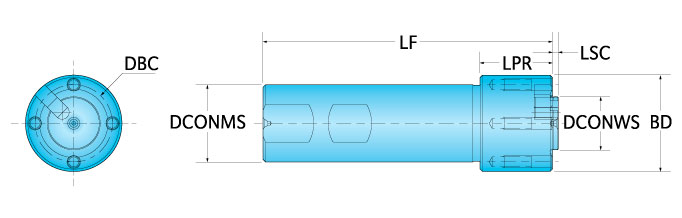

DCONMS Connection Dia. Machine Side |
DCONWS Connection Dia. Workpiece Side |
LF Functional Length |
LPR Protruding Length |
BD Body Dia. |
LSC Clamping Length |
DBC Bolt Circle Dia. |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
DCP Data Chip Provision |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4301150 | TW32-40 | 32.000 mm | 22.00 mm | 120.00 mm | 30.00 mm | 40.00 mm | 2.40 mm | 32 mm 4 Pin | 0 | 0 | No |
Notes:
- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
