Series: SCLCR/L-SH-TB - External Holder

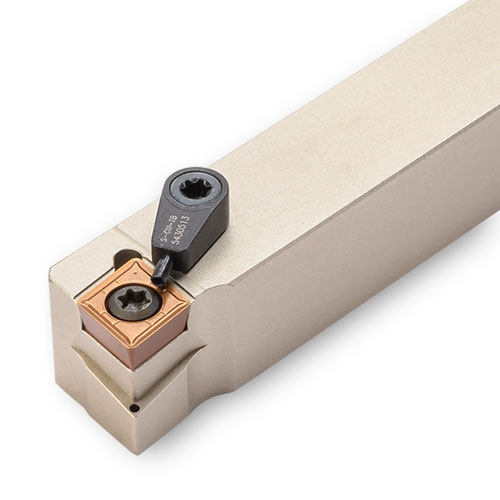

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 80° CC_T/CC_W Inserts
- -5° Lead, Screw Held
- 12-16 mm Shank
- High-Pressure Coolant
EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6165907 | SCLCR1616K09-SH-TB | 16.00 mm | 16.00 mm | 16.00 mm | 125 mm | 16.00 mm | 23.0 mm | Right | CCMT09T302FA |
EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6165904 | SCLCL1212K09-SH-TB | 12.00 mm | 12.00 mm | 12.00 mm | 125 mm | 12.00 mm | 23.0 mm | Left | CCMT09T302FA | ||||
| 6165906 | SCLCR1212K09-SH-TB | 12.00 mm | 12.00 mm | 12.00 mm | 125 mm | 12.00 mm | 23.0 mm | Right | CCMT09T302FA | ||||
| 6165905 | SCLCL1616K09-SH-TB | 16.00 mm | 16.00 mm | 16.00 mm | 125 mm | 16.00 mm | 23.0 mm | Left | CCMT09T302FA | ||||
| 6165907 | SCLCR1616K09-SH-TB | 16.00 mm | 16.00 mm | 16.00 mm | 125 mm | 16.00 mm | 23.0 mm | Right | CCMT09T302FA |
