Series: SCLNR-SH-TB - External Holder

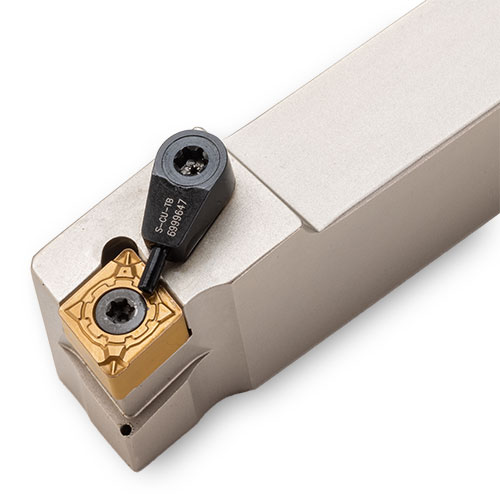

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 80° CN_G/CN_A-0904 Inserts
- -5° Lead, Screw Held
- .625" Shank
- High-Pressure Coolant

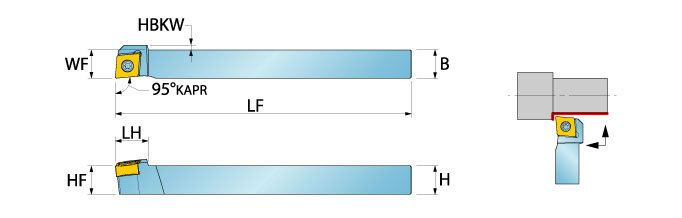

EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
CSP Coolant |
KAPR Cutting Edge Angle |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6310239 | SCLNR10-33A-SH-TB | 0.625 | 0.625 | 0.625 | 4.0 | 0.625 | 0.98 | Yes | 95 | Right | CNGG090402ML |
