Series: SVJBR/L-SH-TB - External Holder

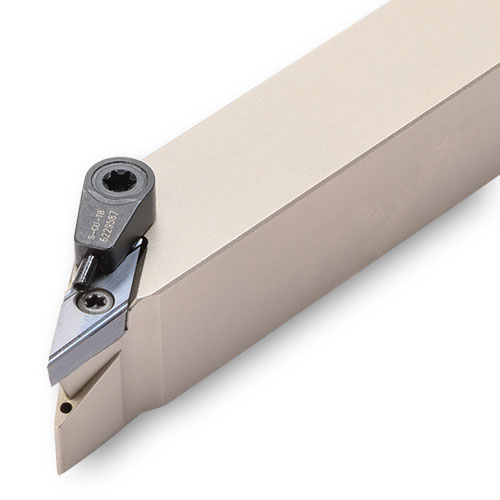

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 35° VB_T/VB_W Inserts
- -3° Lead, Screw Held
- 12-16 mm Shank
- High-Pressure Coolant
EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HBKW Head Back Offset Width |
HAND Hand |
MIID Master Insert Identification |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6165916 | SVJBL1212K11-SH-TB | 12.00 mm | 12.00 mm | 12.00 mm | 125 mm | 12.00 mm | 23.6 mm | 3.0 mm | Left | VBGT110302SA | |
| 6165918 | SVJBR1212K11-SH-TB | 12.00 mm | 12.00 mm | 12.00 mm | 125 mm | 12.00 mm | 23.6 mm | 3.0 mm | Right | VBGT110302SA | |
| 6165917 | SVJBL1616K11-SH-TB | 16.00 mm | 16.00 mm | 16.00 mm | 125 mm | 16.00 mm | 23.6 mm | - | Left | VBGT110302SA | |
| 6165919 | SVJBR1616K11-SH-TB | 16.00 mm | 16.00 mm | 16.00 mm | 125 mm | 16.00 mm | 23.6 mm | - | Right | VBGT110302SA |
