Series: SSC - 3.0 mm Thin Slitter

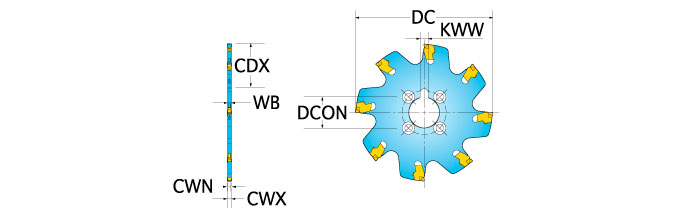

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø80.0 - 160.0 mm
- 3.0 mm Cutting Width
- WSP Size: 3
- Coolant Through!
- Axial Drive
- Full Effective, Insert Width Dictates Cut Width
EDP |
Part Number |
DC Cutting Dia. |
CW Cutting Width |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
WB Body Width |
DCON Bore Dia. |
KWW Keyway |
SSC Insert Seat Size |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3721683 | SSC 80 3 22KR00-TB | 80.00 mm | 3.00 mm | 19.0 mm | 7 | 2.50 mm | 22.00 mm | 6.0 mm | 3 | ||||
| 3721951 | SSC 100 3 22KR00-TB | 100.00 mm | 3.00 mm | 29.0 mm | 8 | 2.50 mm | 22.00 mm | 6.0 mm | 3 | ||||
| 3722162 | SSC 125 3 27KR00-TB | 125.00 mm | 3.00 mm | 39.0 mm | 10 | 2.50 mm | 27.00 mm | 7.0 mm | 3 | ||||
| 3722211 | SSC 160 3 32KR00-TB | 150.00 mm | 3.00 mm | 51.5 mm | 12 | 2.50 mm | 32.00 mm | 8.0 mm | 3 |
Notes:
- Insert extractor supplied with each cutter.
- Note maximum RPM ratings.
