Series: FBD - Radial Drive Adapter, Coolant Thru

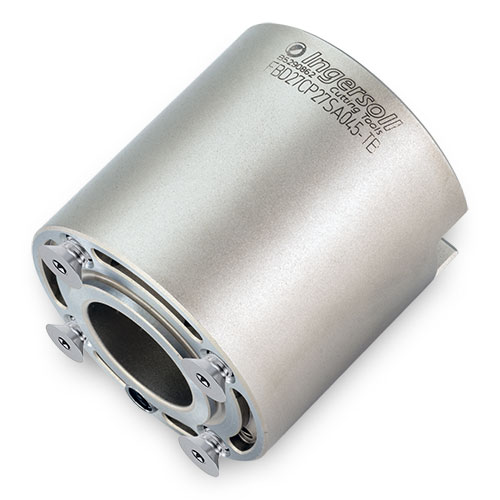

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Drive Shank Adapter (Metric)
- Converts Axial Drive 4 Pin Mount to Radial Drive
- Coolant Through!
- For use with SSC Slitters
- Interchangeable with Inch and Metric milling heads
- Enables machining with larger overhang
- Useful in deep cavity machining applications
EDP |
Part Number |
DCONMS Connection Dia. Machine Side |
DCONWS Connection Dia. Workpiece Side |
LF Functional Length |
BD Body Dia. |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
DCP Data Chip Provision |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3722434 | FBD22CP22SA040-TB | NA | 22.00 mm | 40.00 mm | 40.00 mm | 1 | 3 | NA | NA | NA | NA | |
| 3724274 | FBD27CP27SA045-TB | NA | 27.00 mm | 45.00 mm | 45.00 mm | 1 | 3 | NA | NA | NA | NA | |
| 3722574 | FBD32CP32SA060-TB | NA | 32.00 mm | 60.00 mm | 55.00 mm | 1 | 3 | NA | NA | NA | NA |
Notes:
- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
