Series: 49D & 49J - 90° End Mill Tip

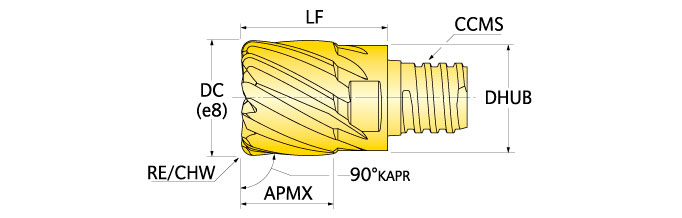

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø16-20 mm
- Chip Surfer Connection
- 8 & 10 Flute, 30 or 45° Helix
- .7xD Flute Length
- Non-Center Cutting
- Corner: Sharp, 0.5, 1.0, 1.6, & 2.0 R
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LF Functional Length |
ZEFF Eff. Flutes |
FHA Flute Helix Angle |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5840383 | 48D16012TRRB05 IN2005 | 16.00 mm | 0.500 R | 12.00 mm | 20.50 mm | 8 | 45 | Chip Surfer T10 | 15.30 mm | 5.0 | ||||
| 5840384 | 48D16012TRRB10 IN2005 | 16.00 mm | 1.000 R | 12.00 mm | 20.50 mm | 8 | 45 | Chip Surfer T10 | 15.30 mm | 5.0 | ||||
| 5840386 | 48D16012TRRB20 IN2005 | 16.00 mm | 2.000 R | 12.00 mm | 20.50 mm | 8 | 45 | Chip Surfer T10 | 15.30 mm | 5.0 | ||||
| 5840385 | 48D16012TRRD16 IN2005 | 16.00 mm | 1.600 R | 12.00 mm | 20.50 mm | 8 | 45 | Chip Surfer T10 | 15.30 mm | 5.0 | ||||
| 5811397 | 49D20015TSRB10 IN2005 | 20.00 mm | 1.000 R | 15.00 mm | 25.50 mm | 10 | 30 | Chip Surfer T12 | 18.45 mm | 3.0 | ||||
| 5811398 | 49D20015TSRB20 IN2005 | 20.00 mm | 2.000 R | 15.00 mm | 25.50 mm | 10 | 30 | Chip Surfer T12 | 18.45 mm | 3.0 |
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
