Series: DCGT CF Chipbreaker

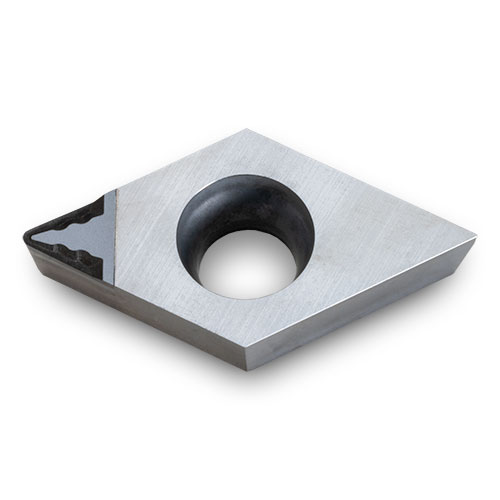

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 7° clearance 55° rhombic PCD-tipped inserts
- For finishing applications
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
LE Cutting Edge Eff. Length |
S Thickness |
D1 Fixing Hole Dia. |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCGT32.50.5CF | DCGT11T302CF | 1 | 0.375 | 0.008 | 0.193 | 0.156 | 0.173 | 0.0020 | 0.0080 | 0.004 | 0.039 |
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
LE Cutting Edge Eff. Length |
S Thickness |
D1 Fixing Hole Dia. |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCGT21.50.5CF | DCGT070202CF | 1 | 0.250 | 0.008 | 0.134 | 0.094 | 0.110 | 0.0020 | 0.0080 | 0.004 | 0.039 | |
| DCGT21.51CF | DCGT070204CF | 1 | 0.250 | 0.016 | 0.130 | 0.094 | 0.110 | 0.0020 | 0.0080 | 0.004 | 0.039 | |
| DCGT32.50.5CF | DCGT11T302CF | 1 | 0.375 | 0.008 | 0.193 | 0.156 | 0.173 | 0.0020 | 0.0080 | 0.004 | 0.039 | |
| DCGT32.51CF | DCGT11T304CF | 1 | 0.375 | 0.016 | 0.185 | 0.156 | 0.173 | 0.0020 | 0.0080 | 0.004 | 0.039 | |
| DCGT32.52CF | DCGT11T308CF | 1 | 0.375 | 0.031 | 0.173 | 0.156 | 0.173 | 0.0020 | 0.0080 | 0.004 | 0.039 |
