Series: TPC - TediPentaCut

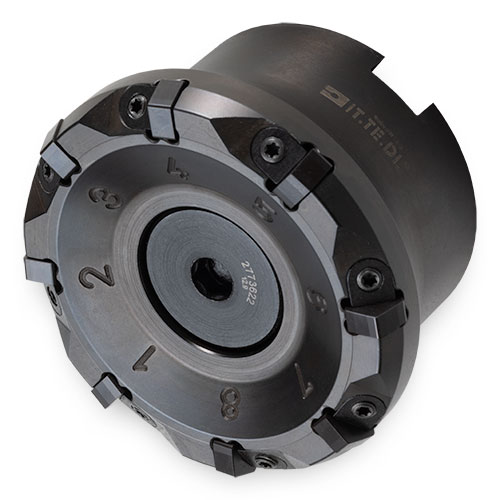

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Fixed pocket face mill
- Solid CBN inserts with 10 effective corners
- High rigidity
- Studied to achieve a superior level of metal removal ratio in cast iron
- Great for roughing (Ap max 3.5 mm)

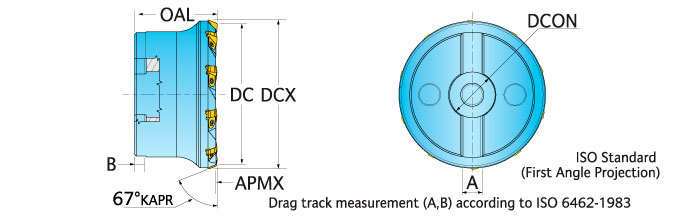

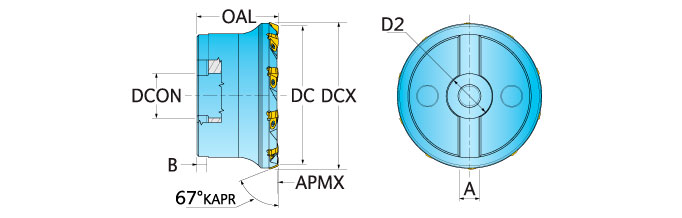

EDP |
Part Number |
DC Cutting Dia. |
DCX Cutting Dia. Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
BMC Body Material Code |
Holder Shape |
DCON Bore Dia. |
DBC Bolt Circle Dia. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2773424 | TPCBU-050R0500NS2 | 50.000 | 54.630 | 40.000 | 5 | Steel | A | 22.00 mm | - | |
| 2773425 | TPCBU-063R0600NS2 | 63.000 | 67.630 | 40.000 | 6 | Steel | B | 22.00 mm | - | |
| 2772439 | TPCBU-080R0800NS2 | 80.000 | 84.630 | 50.000 | 8 | Steel | A | 27.00 mm | - | |
| 2773426 | TPCBU-100R1000NS2 | 100.000 | 104.630 | 58.000 | 10 | Steel | A | 32.00 mm | - | |
| NA | TPCBU-125R1200NS2 | 125.000 | 129.630 | 63.000 | 12 | Steel | A | 40.00 mm | - | |
| 2773428 | TPCBU-160R1600NS2 | 160.000 | 164.630 | 63.000 | 16 | Steel | C | 40.00 mm | 66.7 mm | |
| NA | TPCBU-200R2000NS2 | 200.000 | 204.630 | 63.000 | 20 | Steel | C | 60.00 mm | 101.6 mm |
Notes:
- TediPentaCut uses solid CBN inserts allowing quick setup time.
- Can be used with ITTEDI Shell Mill Arbors or ISO 3937 adapters.
