Series: TPCIS - CBN scraper inserts for TediPentaCut

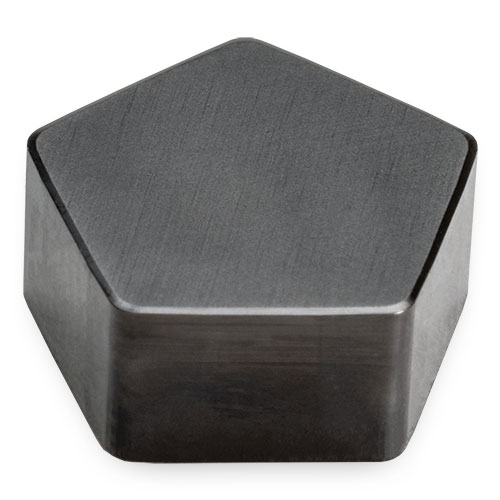

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Solid CBN inserts for rough milling of cast irons and hardened steels.
- 10 effective cutting edges
Part Number |
Application |

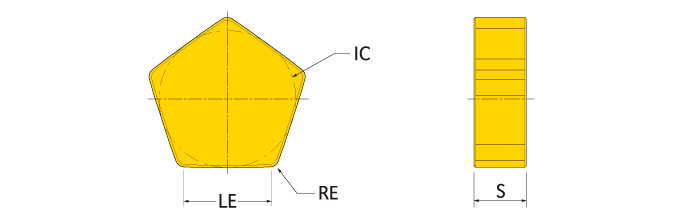

RE Corner Radius |
LE Cutting Edge Eff. Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| TPCIS-2-A0044CJ-NN | CBN - Hardened Steel/Cast Iron | 0.80 mm | 5.75 mm | 10 mm | 4.76 mm | 10 | Neutral |
