Series: SNMU13_M - Presssed Utility Insert

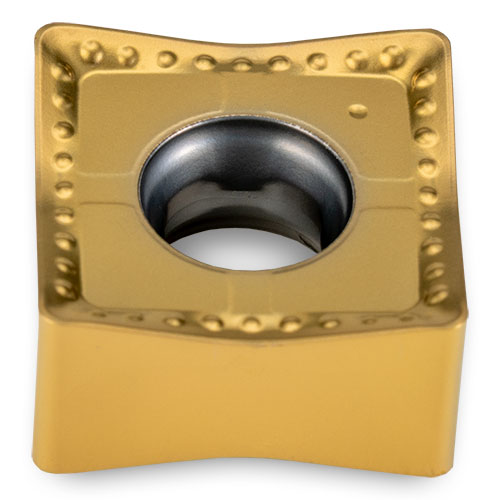

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Carbide & SiN options
- Pressed Utility Insert
- Designed for multiple materials and applications
- 8 indexes
- Corner Radii Options: .015" .031" .047" .062" & .078" R
Part Number |
Application |
RE Corner Radius |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|
| SNMU130604N-M | Utility | 0.015 | 0.530 | 0.274 | 8 | Neutral | |
| SNMU130608N-M | Utility | 0.031 | 0.530 | 0.274 | 8 | Neutral | |
| SNMU130612N-M | Utility | 0.047 | 0.530 | 0.274 | 8 | Neutral | |
| SNMU130620N-M | Utility | 0.079 | 0.530 | 0.274 | 8 | Neutral |
