Series: IPB - DIN2080-A

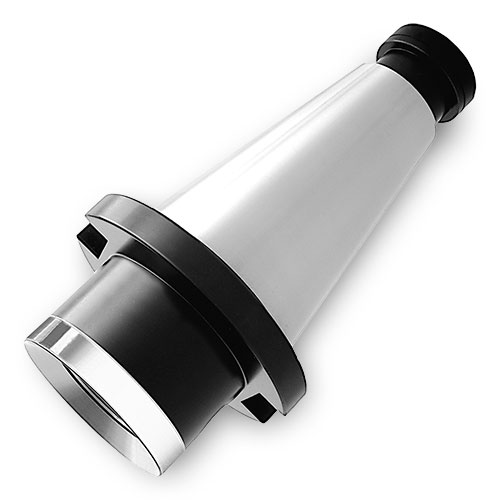

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- DIN Spindle Adapter
- IPB compatible

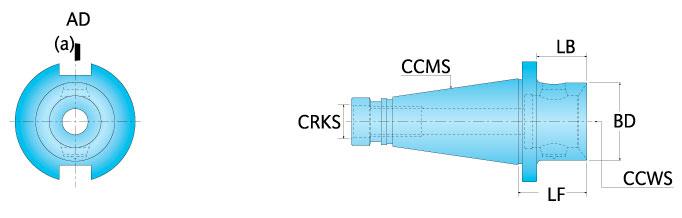

EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
CRKS Connection Retention Knob Thread Size |
BD Body Dia. |
LF Functional Length |
LB Body Length |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |
FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941580 | DIN2080-A30-IPB50.58 | DIN2080-A30-IPB50.58 | NMTB30 | M12 | 50.00 mm | 2.28 | - | MHD 50 | 1.320 | - | |
| 2941581 | DIN2080-A40-IPB50.48 | DIN2080-A40-IPB50.48 | NMTB40 | M16 | 50.00 mm | 1.89 | 1.440 | MHD 50 | 1.980 | - | |
| 2941582 | DIN2080-A40-IPB63.60 | DIN2080-A40-IPB63.60 | NMTB40 | M16 | 63.00 mm | 2.36 | - | MHD 63 | 2.640 | - | |
| 2941584 | DIN2080-A50-IPB50.48 | DIN2080-A50-IPB50.48 | NMTB50 | M24 | 50.00 mm | 1.89 | 1.290 | MHD 50 | 5.730 | - | |
| 2941585 | DIN2080-A50-IPB63.56 | DIN2080-A50-IPB63.56 | NMTB50 | M24 | 63.00 mm | 2.20 | 1.610 | MHD 63 | 5.950 | - | |
| 2941586 | DIN2080-A50-IPB80.60 | DIN2080-A50-IPB80.60 | NMTB50 | M24 | 80.00 mm | 2.36 | 1.770 | MHD 80 | 7.050 | - |
Notes:
- **For stock D'Andrea items. Refer to series here.
