Series: IPB - XT-Extension

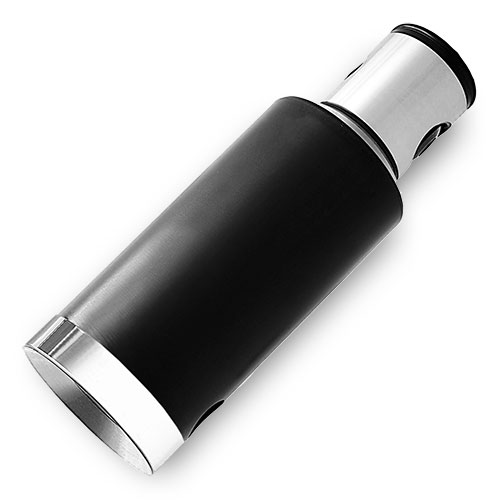

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- IPB compatible
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
BD Body Dia. |
LPR Protruding Length |
CCWS Connection Code Workpiece Side |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|
| 2941620 | IPB16-XT-25 | IPB16-XT-25 | IPB-16 | 16.000 mm | 0.98 | IPB-16 | 0.088 | |
| 2941621 | IPB20-XT-32 | IPB20-XT-32 | IPB-20 | 20.000 mm | 1.26 | IPB-20 | 0.154 | |
| 2941622 | IPB25-XT-25 | IPB25-XT-25 | IPB-25 | 25.000 mm | 0.98 | IPB-25 | 0.198 | |
| 2941623 | IPB25-XT-40 | IPB25-XT-40 | IPB-25 | 25.000 mm | 1.57 | IPB-25 | 0.330 | |
| 2941624 | IPB32-XT-32 | IPB32-XT-32 | IPB-32 | 32.000 mm | 1.26 | IPB-32 | 0.440 | |
| 2941625 | IPB32-XT-50 | IPB32-XT-50 | IPB-32 | 32.000 mm | 1.97 | IPB-32 | 0.661 | |
| 2941627 | IPB40-XT-63 | IPB40-XT-63 | IPB-40 | 40.000 mm | 2.48 | IPB-40 | 1.320 | |
| 2941626 | IPB40-XT-40 | IPB40-XT-40 | IPB-40 | 40.000 mm | 1.57 | IPB-40 | 0.881 | |
| 2941628 | IPB50-XT-50 | IPB50-XT-50 | IPB-50 | 50.000 mm | 1.97 | IPB-50 | 1.540 | |
| 2941630 | IPB50-XT-100 | IPB50-XT-100 | IPB-50 | 50.000 mm | 3.94 | IPB-50 | 3.306 | |
| 2941629 | IPB50-XT-80 | IPB50-XT-80 | IPB-50 | 50.000 mm | 3.15 | IPB-50 | 2.425 | |
| 2941632 | IPB63-XT-100 | IPB63-XT-100 | IPB-63 | 63.000 mm | 3.94 | IPB-63 | 4.850 | |
| 2941631 | IPB63-XT-63 | IPB63-XT-63 | IPB-63 | 63.000 mm | 2.48 | IPB-63 | 3.086 | |
| 2941633 | IPB63-XT-125 | IPB63-XT-125 | IPB-63 | 63.000 mm | 4.92 | IPB-63 | 6.393 | |
| 2941636 | IPB80-XT-160 | IPB80-XT-160 | IPB-80 | 80.000 mm | 6.30 | IPB-80 | 13.440 | |
| 2941634 | IPB80-XT-80 | IPB80-XT-80 | IPB-80 | 80.000 mm | 3.15 | IPB-80 | 6.613 | |
| 2941635 | IPB80-XT-125 | IPB80-XT-125 | IPB-80 | 80.000 mm | 4.92 | IPB-80 | 10.140 |
Notes:
- **For stock D'Andrea items. Refer to series here.
