Series: IPB - ART-Vibration Dampening Reducer

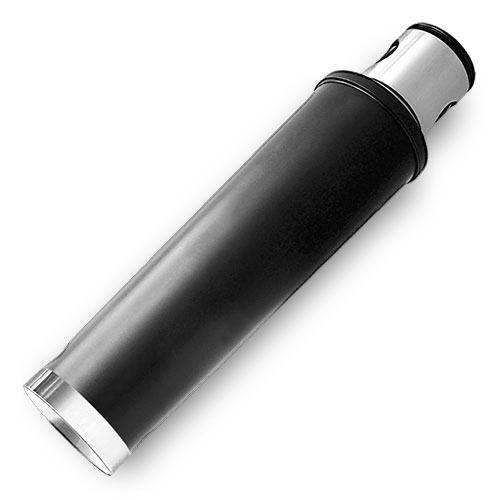

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- IPB anti-vibe reducer
- IPB compatible
EDP |
ANSI Number |
ISO Number |

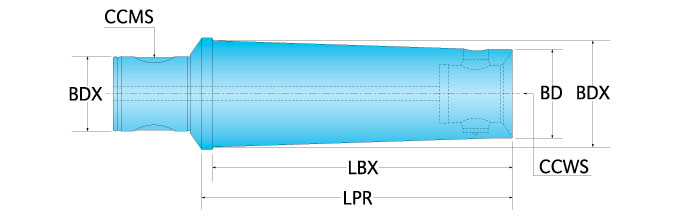

CCMS Connection Code Machine Side |
LPR Protruding Length |
LBX Body Length Max. |
BD Body Dia. |
BDX Body Dia. Max. |
Flange Dia. |
CCWS Connection Code Workpiece Side |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941667 | IPB50-ART16-74 | IPB50-ART16-74 | IPB-50 | 2.91 | 2.560 | 16.00 mm | 17.50 mm | 50.00 mm | IPB-16 | 1 | 1 | |
| 2941668 | IPB50-ART20-93 | IPB50-ART20-93 | IPB-50 | 3.66 | 3.346 | 20.00 mm | 21.50 mm | 50.00 mm | IPB-20 | 1 | 1 | |
| 2941669 | IPB50-ART25-117 | IPB50-ART25-117 | IPB-50 | 4.61 | 4.331 | 25.00 mm | 27.00 mm | 50.00 mm | IPB-25 | 1 | 1 | |
| 2941670 | IPB50-ART32-144 | IPB50-ART32-144 | IPB-50 | 5.67 | 5.433 | 32.00 mm | 35.00 mm | 50.00 mm | IPB-32 | 1 | 1 | |
| 2941664 | IPB50-ART40-176 | IPB50-ART40-176 | IPB-50 | 6.93 | 6.693 | 40.00 mm | 47.00 mm | 50.00 mm | IPB-40 | 1 | 1 | |
| 2941665 | IPB63-ART50-220 | IPB63-ART50-220 | IPB-63 | 8.66 | 8.425 | 50.00 mm | 60.00 mm | 63.00 mm | IPB-50 | 1 | 1 | |
| 2941666 | IPB80-ART63-280 | IPB80-ART63-280 | IPB-80 | 11.02 | 10.709 | 63.00 mm | 77.00 mm | 80.00 mm | IPB-63 | 1 | 1 |
Notes:
- **For stock D'Andrea items. Refer to series here.
