Series: IPB - AFH (Inch) Analog Finish Boring Head

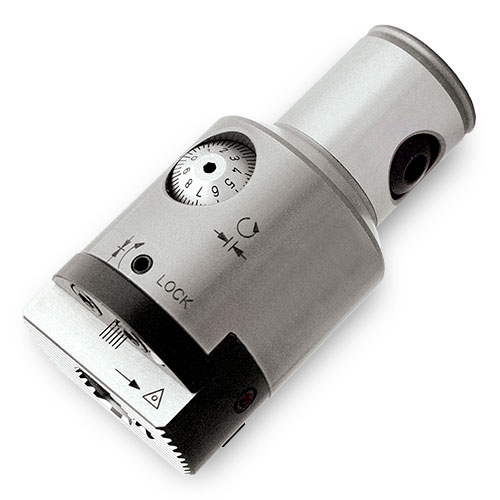

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.708-4.251"
- .0001" adjustability
- IPB compatible
EDP |
ANSI Number |
ISO Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
CCMS Connection Code Machine Side |
BD Body Dia. |
LPR Protruding Length |
ADJRGR Adjustment Range Radial |
CASC Cartridge Size Code |
WT Weight (lb) |

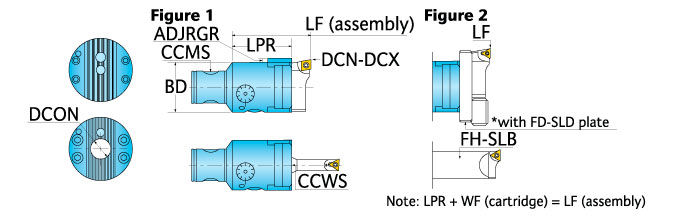

FIGURE Figure |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2941728 | AFH-IPB16-16-INCH | AFH-IPB16-16-INCH | 0.708 | 0.906 | IPB-16 | 16.00 mm | 1.02 | 0.039 | NA | 0.110 | 1 | |
| 2941729 | TRM20INCH | AFH-IPB20-20-INCH | 0.866 | 1.142 | IPB-20 | 20.00 mm | 1.24 | 0.079 | NA | 0.221 | 1 | |
| 2941730 | AFH-IPB25-25-INCH | AFH-IPB25-25-INCH | 1.102 | 1.496 | IPB-25 | 25.00 mm | 1.58 | 0.079 | NA | 0.441 | 1 | |
| 2941731 | AFH-IPB32-32-INCH | AFH-IPB32-32-INCH | 1.397 | 2.027 | IPB-32 | 32.00 mm | 2.03 | 0.119 | NA | 0.772 | 1 | |
| 2941732 | AFH-IPB40-40-INCH | AFH-IPB40-40-INCH | 1.889 | 2.480 | IPB-40 | 40.00 mm | 2.60 | 0.158 | NA | 1.544 | 1 | |
| 2941733 | AFH-IPB50-50-INCH | AFH-IPB50-50-INCH | 0.098 | 4.251 | IPB-50 | 50.00 mm | 2.36 | 0.157 | NA | 2.205 | 2 |
Notes:
- **For stock D'Andrea items. Refer to series here.
